The CEM Elettromeccanica Gearwheel Pump Gear 600/10L-10BT is designed for transferring low viscosity and lubricating liquids free from solids or abrasives, such as diesel oil and light lubricating oil. It features a blue gearwheel pump with an inbuilt overflow valve (max 10 bar), limited self-priming, and a 400 V short circuit motor. The pump has steel gearwheels and cast steel housing, handles liquids up to 140°C, and operates at 600 L/hour capacity with a suction head of 2.0 m. It weighs 14 kg and has a shaft power of 0.37 kW at 1400 rpm.
- Description
- Ask a Question
-

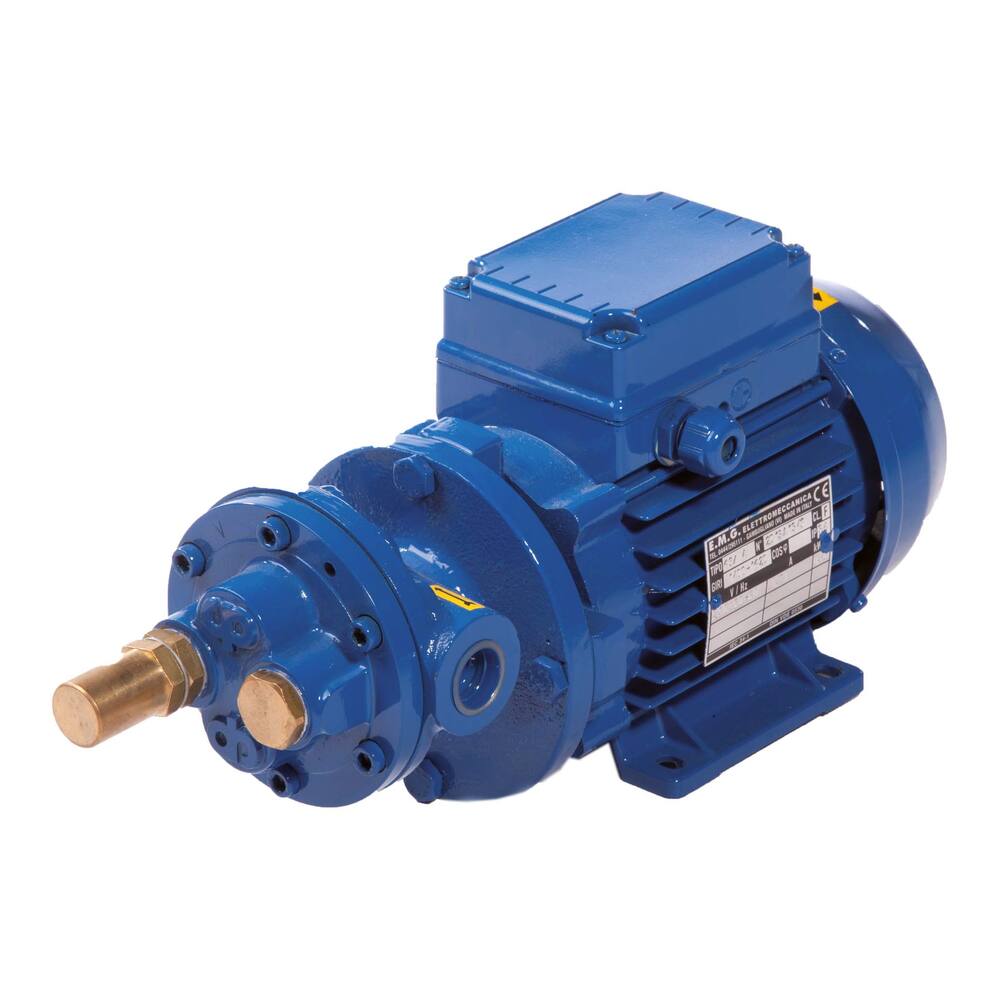

CEM Elettromeccanica Gearwheel Pump Gear 600/10L-10BT
This gearwheel pump is designed for the transfer of low viscosity and lubricating liquids free from solids or abrasive particles. Ideal fluids include diesel oil, light lubricating oil, spindle oil, preheated grease, and gas oil.
- Type: GEAR
- Colour: blue
- Special feature: inbuilt overflow valve (max 10 bar), NOT ADJUSTED
- Pump type: gearwheel pump, limited self-priming
- Impeller type: gearwheels
- Motor type: 400 volt short circuit motor (normalized flange motors)
- Fuse: NOT inbuilt
- Shaft seal: carbon on hard metal mechanical seal
- Material gearwheels: steel* (also available in bronze or stainless steel for foodstuffs industry)
- Material pump housing: cast steel* (also available in bronze or stainless steel for foodstuffs industry)
- Material pump shaft: toughened steel*
- Liquids handled: clean lubricating oil and neutral low viscosity liquids with lubricating properties, max 140°C
- Viscosity: maximum 20 Engler, with significant effect on capacity
- Capacities measured with water
- Suction head depends on viscosity
- Particle size: zero
- Dimensions (LxWxH): 410 x 155 x 226 mm
- Weight: 14 kg
- Amperage: 400 V, 1.2 A
- Shaft power: 0.37 kW, 0.5 hp, 1400 rpm
- Product code: 93.90.511
- Suction head: 2.0 m
- Pipe diameter pressure: 3/4"
- Pipe diameter suction: 3/4"
- Pump type: Toothed wheel pump
- Medium: Lubricating oil
- Particle size allowed: 2 mm
- Max discharge head: 100.0 m
- Voltage: 400 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX certification: No
- Separate float switch: not included
- Free flow rate: 600 L/hour
- Capacity at 5 meter head: 600 L/hour
-
