ID
1315010
$ 16,951.27
1-2 weeks delivery time
-
+
The CEM Elettromeccanica Bronze Pump AM 65/1-25T 690V is a strong bronze self-priming centrifugal pump with an open impeller, designed for deck wash and bilge applications on commercial vessels, large pleasure craft, and coastal shipping, also effective for fire extinguishing and cooling medium pumping. It handles slightly contaminated and sea water up to 70°C, operates at 400/690 volts, delivers 90,000 liters per hour at 30 meters head, with a maximum discharge head of 56 meters, and weighs 198 kg.
- Description
- Ask a Question
-

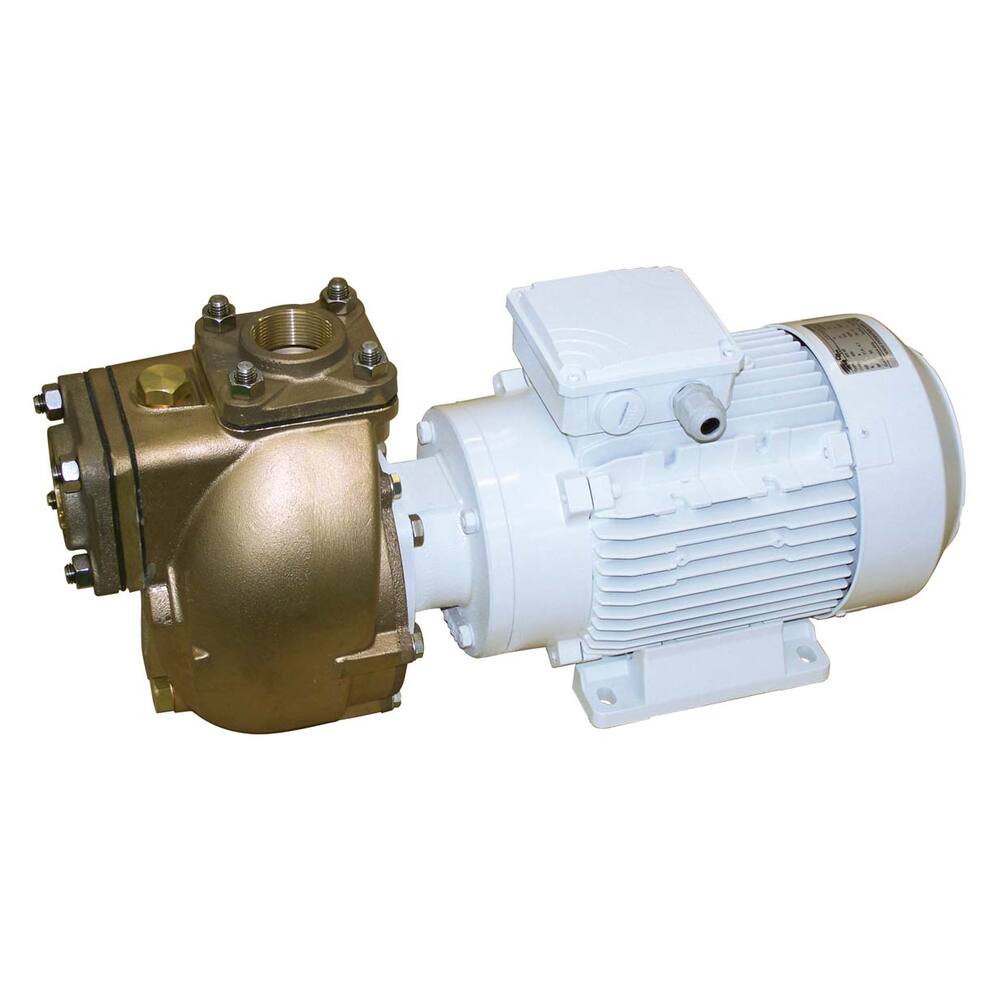

CEM Elettromeccanica Bronze Pump AM 65/1-25T 690V
This robust bronze pump is designed for deck wash and bilge applications on commercial vessels, large pleasure craft, and coastal shipping. It's also effective as a fire extinguishing pump and a cooling medium pump for seagoing ships.
- Type: AM
- Colour: bronze and white
- Pump type: self-priming centrifugal pump
- Impeller type: open impeller
- Motor type: short circuit motor
- Fuse: NOT built-in
- Shaft seal: ceramic on carbon mechanical seal with NBR elastomers
- Material impeller: bronze
- Material pump housing: bronze
- Material pump shaft: stainless steel AISI 316
- Liquids handled: slightly contaminated water, sea water, max temperature 70°C
- Performance at different heads:
- 30 m head: 90,000 litres/hour
- 35 m head: 81,000 litres/hour
- 40 m head: 72,000 litres/hour
- 45 m head: 59,000 litres/hour
- 50 m head: 45,000 litres/hour
- 55 m head: 27,000 litres/hour
- Connection discharge: DN65 flange with 2.1/2" internal thread
- Connection suction: DN80 flange with 3" internal thread
- Dimensions (LxWxH): 892 x 350 x 382 mm
- Weight: 198 kg
- Amperage 400 V: 35.0 A
- Amperage 690 V: 20.5 A
- Shaft power: 18.0 kW, 25.0 hp, 2800 rpm
- Product code: 92.15.250
- Suction head: 7.5 m
- Pipe diameter pressure: 2.1/2"
- Pipe diameter suction: 3"
- Model: Bronze pump housing
- Dry set-up pump: self-priming
- Medium: Water
- Particle size: 14 mm
- Discharge head max: 56.0 m
- Voltage: 400/690 V
- Current type: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Free flow: 96,000 L/hour
- Capacity at 5 meters: 96,000 L/hour
-
