ID
1315012
$ 1,551.64
1-2 weeks delivery time
-
+

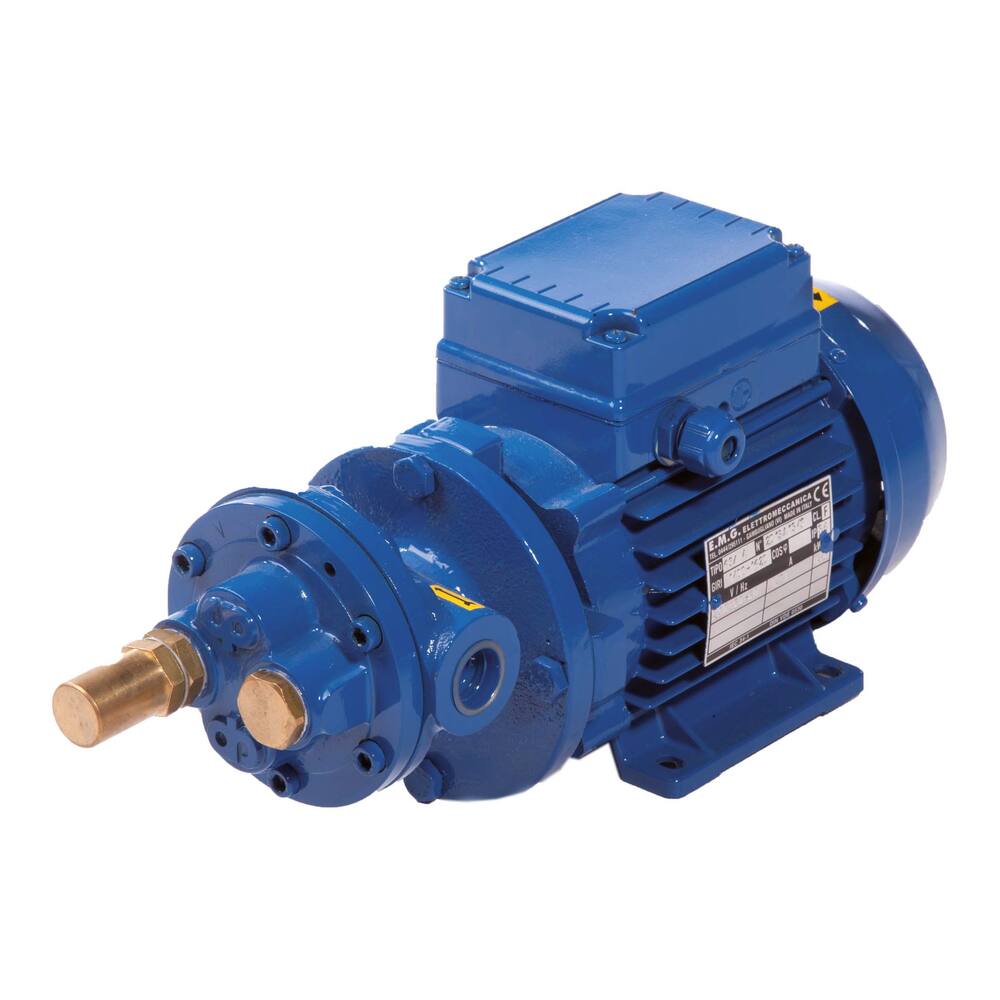

The CEM Elettromeccanica Gearwheel Pump Gear 300/5L-10BT is a blue gearwheel pump for low viscosity lubricating liquids without solids or abrasives, powered by a 400 V short circuit motor with a normalized flange. It features an inbuilt overflow valve (max 10 bar), carbon on hard metal mechanical shaft seal, and cast steel housing with steel gearwheels. The pump delivers 300 litres per hour at 5 metres head and weighs 11 kg.
- Description
- Ask a Question
-
CEM Elettromeccanica Gearwheel Pump Gear 300/5L-10BT
Designed for low viscosity lubricating liquids without solids or abrasives, this pump transports diesel oil, light lubricating oil, spindle oil, preheated grease, and gas oil reliably. It features a 400 volt short circuit motor for normalized flange motor applications.
- Type: GEAR
- Colour: blue
- Special feature: inbuilt overflow valve (max 10 bar), not adjusted
- Pump type: gearwheel pump, limited self-priming
- Impeller type: gearwheels
- Motor type: 400 volt short circuit motor (normalized flange)
- Fuse: not inbuilt
- Shaft seal: carbon on hard metal mechanical seal
- Material gearwheels: steel* (bronze or stainless steel optional for food industry)
- Material pump housing: cast steel* (bronze or stainless steel optional for food industry)
- Material pump shaft: toughened steel* (bronze or stainless steel optional for food industry)
- Liquids: clean lubricating oil and neutral low viscosity liquids with lubricating properties
- Maximum temperature: 140°C
- Viscosity: maximum 20 Engler (strong effect on capacity)
- Capacities measured with water
- Suction head: depends on viscosity
- Particle size allowed: zero
- Dimensions (LxWxH): 390 x 150 x 226 mm
- Weight: 11 kg
- Amperage: 400 V, 0.8 A
- Shaft power: 0.25 kW, 0.35 hp, 1400 rpm
- Product code: 93.90.506
- Suction head: 1.0 m
- Pipe diameter pressure: 1/2"
- Pipe diameter suction: 1/2"
- Pump type: toothed wheel pump
- Medium: lubricating oil
- Particle size: 2 mm
- Max discharge head: 100.0 m
- Voltage: 400 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Free flow: 300 L/hour
- Capacity at 5 meter: 300 L/hour
-
