ID
1316732
$ 880.13
1-2 weeks delivery time
-
+

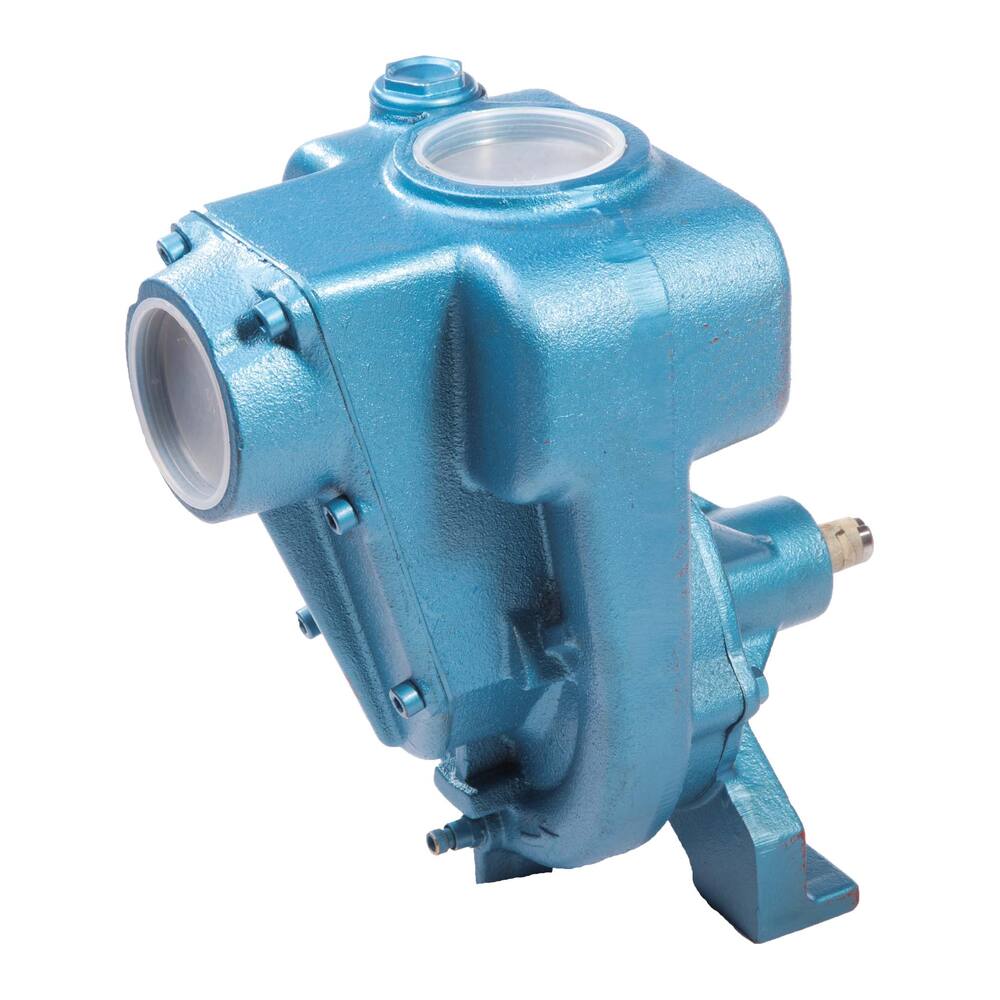

The Alpha Pompe 03RAS-3" Right-Hand Rotation Pump is a blue, self-priming centrifugal pump suitable for maritime and industrial tasks including bilge and deck washing, sprinkling, and dewatering. It has a cast iron open impeller and housing, stainless steel shaft, and ceramic on carbon mechanical seal, handling liquids like contaminated water and gas oil up to 90°C. It delivers up to 60,000 liters per hour at 5 meters head with a maximum discharge head of 18 meters, powered by a 3.0 kW motor running at 2800 to 3600 rpm, and features 3" internal thread connections.
- Description
- Ask a Question
-
Alpha Pompe 03RAS-3" Right-Hand Rotation Pump
Designed for shipping tasks including bilge and deck washing, sprinkling, dewatering, and use in industrial, construction, and agricultural environments.
- Type: 03RAS
- Colour: blue
- Pump type: self-priming centrifugal pump
- Impeller type: open impeller
- Rotation direction: right-hand rotation
- Shaft seal: ceramic on carbon mechanical seal
- Material impeller: cast iron
- Material pump housing: cast iron
- Material pump shaft: stainless steel
- Suitable liquids: contaminated water, sea water, gas oil, etc., max temperature 90°C
- Performance:
- 10 metres head: 42,000 litres per hour
- 15 metres head: 27,000 litres per hour
- Free flow: 60,000 L/hour
- Capacity at 5 metres: 60,000 L/hour
- Discharge head max: 18.0 m
- Connections: 3" internal thread
- Dimensions (L×W×H): 370 × 193 × 305 mm
- Weight: 19.0 kg
- Shaft diameter: 20 mm
- Shaft power: 3.0 kW (4.0 hp) at 2800 rpm
- Speed range: 2800 to 3600 rpm
- Product code: 95.35.028
- Suction head: 7.0 m
- Pipe diameter pressure: 3"
- Pipe diameter suction: 3"
- Model: Clockwise
- Pump type: Dry set-up pump, self-priming
- Medium: Water
- Particle size: 20 mm
-
