The Alpha Pompe 03RA-3" Right-Hand Rotation Pump is designed for maritime use such as bilge and deck washing, sprinkling, and dewatering, also suitable for industrial and agricultural applications. It is a self-priming centrifugal pump with a cast iron open impeller and housing, stainless steel shaft, and ceramic on carbon mechanical seal. It handles contaminated water and similar liquids up to 90°C, with a maximum discharge head of 28 meters and flow rates up to 87,000 liters per hour at 5 meters head. The pump runs at 2000 to 3000 rpm with a 5.6 kW motor and has 3" internal thread connections.
- Description
- Ask a Question
-

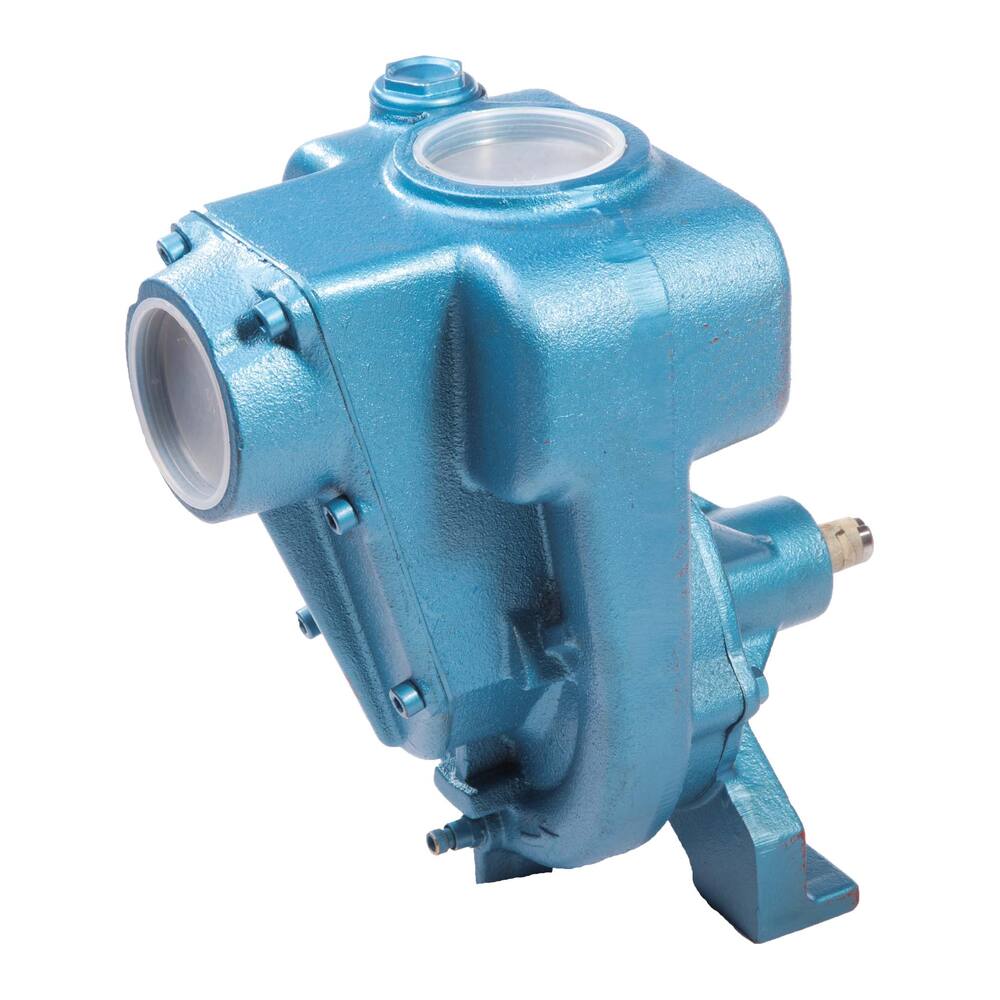

Alpha Pompe 03RA-3" Right-Hand Rotation Pump
This pump is designed for maritime use as a bilge and deck wash pump, also suitable for sprinkling, dewatering, and applications in industry, construction, and agriculture.
- Type: 03RA
- Colour: blue
- Pump type: self-priming centrifugal pump
- Impeller type: open impeller
- Rotation direction: right-hand rotation
- Shaft seal: ceramic on carbon mechanical seal
- Material impeller: cast iron
- Material pump housing: cast iron
- Material pump shaft: stainless steel
- Liquids handled: contaminated water, sea water, gas oil, etc. Maximum temperature 90°C
- Flow rates:
- 10 metres head: 87,000 litres/hour
- 15 metres head: 84,000 litres/hour
- 20 metres head: 75,000 litres/hour
- 25 metres head: 40,000 litres/hour
- 27 metres head: 21,000 litres/hour
- Connections: 3" internal thread
- Dimensions (LxWxH): 377 x 274 x 435 mm
- Weight: 43.0 kg
- Shaft diameter: 25 mm
- Shaft power: 5.6 kW (7.5 hp) at 2800 rpm
- Speed range: 2000 - 3000 rpm
- Product code: 95.35.030
- Suction head: 7.0 m
- Pipe diameter pressure: 3"
- Pipe diameter suction: 3"
- Model: Clockwise
- Pump type: Dry set-up pump, self-priming
- Medium: Water
- Particle size: 24 mm
- Max discharge head: 28.0 m
- Free flow: 87,000 L/hour
- Capacity at 5 metres: 87,000 L/hour
-
