The Alpha Pompe 04RAC-4" Right-Hand Rotation Pump is specially engineered for marine and industrial tasks including bilge and deck washing, sprinkling, dewatering, and construction and agricultural uses. It is a self-priming centrifugal pump with a cast iron open impeller and housing, stainless steel shaft, and ceramic on carbon mechanical seal, capable of handling liquids up to 90°C. It delivers a maximum discharge head of 44.5 meters and flow rates up to 180,000 liters per hour at 5 meters head, powered by an 18.75 kW motor running at 2400 to 3200 rpm, with 4" internal thread connections.
- Description
- Ask a Question
-

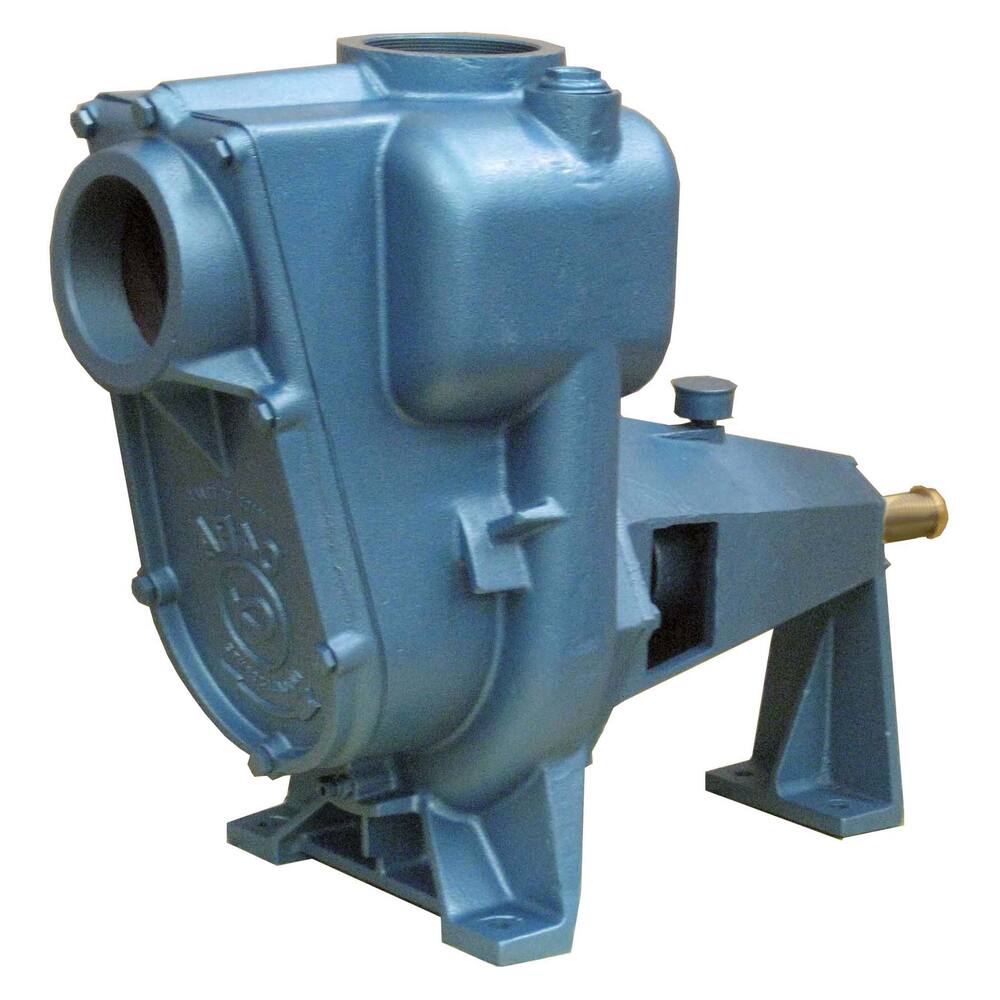

Alpha Pompe 04RAC-4" Right-Hand Rotation Pump
Specially engineered for marine and industrial tasks including bilge and deck washing, sprinkling, dewatering, and various construction and agricultural uses.
- Type: 04RAC
- Colour: blue
- Pump type: self-priming centrifugal pump
- Impeller type: open impeller
- Rotation direction: right-hand rotation
- Shaft seal: ceramic on carbon mechanical seal
- Material impeller: cast iron
- Material pump housing: cast iron
- Material pump shaft: stainless steel
- Liquids handled: contaminated water, sea water, gas oil, etc. Maximum temperature 90°C
- Flow rates:
- 10 metres head: 180,000 litres/hour
- 15 metres head: 180,000 litres/hour
- 20 metres head: 180,000 litres/hour
- 25 metres head: 153,000 litres/hour
- 30 metres head: 130,000 litres/hour
- 35 metres head: 101,000 litres/hour
- 40 metres head: 72,000 litres/hour
- Connections: 4" internal thread
- Dimensions (LxWxH): 802 x 313 x 558 mm
- Weight: 92.0 kg
- Shaft diameter: 30 mm
- Shaft power: 18.75 kW (25 hp) at 2600 rpm
- Speed range: 2400 - 3200 rpm
- Product code: 95.35.045
- Suction head: 7.0 m
- Pipe diameter pressure: 4"
- Pipe diameter suction: 4"
- Model: Clockwise
- Pump type: Dry set-up pump, self-priming
- Medium: Water
- Particle size: 39 mm
- Max discharge head: 44.5 m
- Free flow: 180,000 L/hour
- Capacity at 5 metres: 180,000 L/hour
-
