ID
1330968
$ 412.93
1-2 weeks delivery time
-
+
The Johnson Pump 10-24760-02 impeller pump unit with integrated reversing switch is built to drain old oil and pump fresh oil into the engine during oil changes. A 24V DC motor, bronze housing, brass pump head, and oil-resistant nitrile impeller support durable operation, while self-priming up to 3 m and continuous-duty capability up to 0.6 bar enhance installation flexibility near boat engines. It uses a 3/8" BSP female connection, draws 7.7A (10A fuse required), and is supplied with a 3/8" stopcock; listed output is up to 15.7 L/min (10W-40 at 20°C) with a stated capacity of 21 L/min.
- Description
- Ask a Question
-

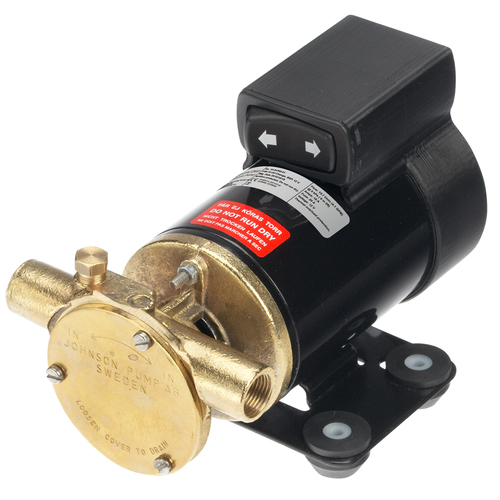

Self-Priming Johnson Pump 10-24760-02 Oil Change Impeller Unit
The Johnson Pump 10-24760-02 is a self-priming impeller pump designed for efficient oil change work on board. Intended for permanent installation near boat engines, it helps you suck out used oil and pump fresh oil into the engine, with flow direction changed via the integrated reversing switch.
Application
- Oil change pump for draining and filling engine oil near boat engines
- Flow direction change via integrated reversing switch
Technical Specifications
Brand Johnson Pump Part Number 10-24760-02 Model F3B-19 Article Number 66102476002 EAN 8719182068082 Voltage 24V DC Amperage 7.7A Required Fuse 10A Output (Free Flow) Up to 15.7 L/min (oil 10W-40 at 20°C) Capacity 21 L/min Self-Priming Up to 3 m (under perfect conditions) Maximum Head Should not exceed 6 m Continuous Operation Limit Up to max. 0.6 bar head pressure Connection 3/8" BSP female thread (R3/8"); fittings not included Housing Material Bronze Pump Head Material Brass Impeller Oil-resistant nitrile; impeller reference 09-843S-9 Shaft Seal Lip seal Dimensions (L × W × H) 170 mm × 113 mm × 115 mm (6.7" × 4.4" × 4.5") Dimensions (L × W × H) 16.8 cm × 11.3 cm × 11.5 cm Weight 2.1 kg (4.5 lbs) Shipping Weight 0.40 kg Product Portfolio Oil change pumps; electric impeller pumps
Product Details
- Integrated switch: Designed to control oil suction and oil delivery during the oil change process
- Heavy-duty motor: Built for long service life and includes built-in thermal overload protection
- Included: 3/8" stopcock
Features
- Self-priming operation for practical installation near the engine
- Reversing switch for quick flow direction changes
- Bronze housing with brass pump head and nitrile impeller for oil-handling durability
- Continuous operation capability up to the stated pressure limit
-
