ID
1330969
$ 120.22
1-2 weeks delivery time
-
+
The Johnson Pump Viking Compact 10-24800-01 manual bilge pumping unit delivers full-capacity, hand-operated dewatering performance in tight installation spaces, using a single-chamber diaphragm design with a self-sealing gasket and quick bulkhead mounting with four fasteners. It supports 360° rotatable inlet and outlet ports with KlickTite connectors and includes both 25 mm (1 in) and 38 mm (1 1/2 in) hose connection options, providing up to 45 L/min flow at 10 kPa and 45 strokes/min. Durable construction includes a polypropylene housing, ABS cover, nitrile rubber diaphragm and valves, stainless-steel metal parts, and wetted components in polypropylene, PA66GF30 plastic, and nitrile rubber, with a maximum liquid temperature of +60 °C and lift/head capability up to a combined 3.3 m.
- Description
- Ask a Question
-

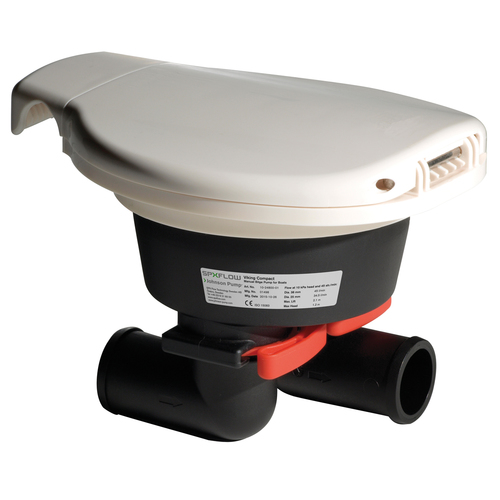

Johnson Pump 10-24800-01 Viking Compact Hand Bilge Pump Unit
The Johnson Pump Viking Compact is a full-capacity, hand-operated bilge pump built for boats where space is limited. Its recessed bulkhead installation keeps the pump body behind the panel so only the handle remains visible in the cabin or cockpit, while the self-sealing gasket helps deliver a watertight fit for dependable, low-maintenance operation.
Application
- Hand-operated bilge pumping for tight spaces
- Bulkhead mounting with installation from one side
Technical Specifications
Brand Johnson Pump Part Number 10-24800-01 Article Number 66102480001 Pump Type Single-chamber diaphragm pump Port Connection Options Included KlickTite connectors for 25 mm (1 in) or 38 mm (1 1/2 in) hose Port Rotation 360° rotatable inlets and outlets Flow at 10 kPa and 45 strokes/min (25 mm connection) 34.5 L/min (9.1 US gallons/min) Flow at 10 kPa and 45 strokes/min (38 mm connection) 45 L/min (11.9 US gallons/min) Maximum Suction Height 2.1 m (7 ft) Maximum Head 1.2 m (4 ft) Maximum Combined Suction and Delivery Height 3.3 m (10.8 ft) Maximum Liquid Temperature +60 °C (140 °F) Weight 0.675 kg (1.5 lbs) Shipping Weight 1.50 kg
Product Details
- Housing: Polypropylene
- Cover: ABS
- Diaphragm: Nitrile rubber
- Valves: Nitrile rubber (1 leaf valve and 1 tricuspid valve)
- Wetted Parts: Polypropylene, PA66GF30 plastic, and nitrile rubber
- Metal Parts: Stainless steel
- Model: Viking Compact, built-in for mounting
Features
- Quick bulkhead installation using four fasteners
- Self-sealing, watertight gasket for a tight bulkhead fit
- Recessed body design so only the handle is visible
- Self-priming for immediate pumping action
- Rattle-free design
- Heavy-duty non-choke valves throughout, including a high-flow tricuspid outlet valve
- Fits an industry-standard aperture and is suitable for tight spaces
- Complies with ISO 15083 standard
- Limited 3-year warranty
-
