ID
1330971
$ 289.28
1-2 weeks delivery time
-
+

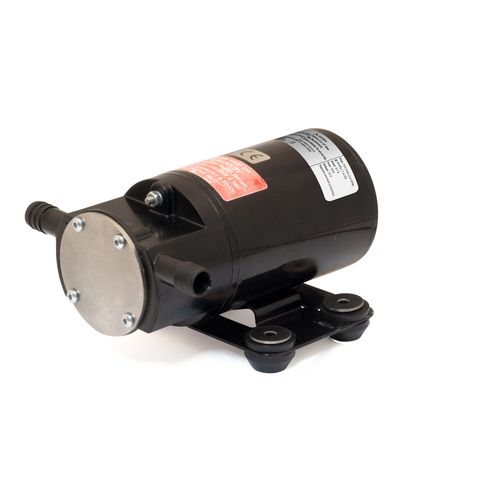

The Johnson Pump 10-24886-02 self-priming impeller pump (F2P10-19) delivers up to 15 LPM at free flow from a 24V DC motor, making it a versatile choice for bilge pumping, deck washing, circulation, and transferring oil and diesel. A heavy-duty motor with built-in thermal overload protection supports long service life, while continuous operation capability up to 0.6 bar head pressure and a compact footprint help suit tight marine installations. The pump uses 13 mm (1/2 in) hose connections and is built with a plastic pump head, an oil-resistant nitrile impeller, and a stainless wear plate for durable operation.
- Description
- Ask a Question
-
Johnson Pump 10-24886-02 Impeller Pump Unit (F2P10-19) for 24V Systems
The Johnson Pump 10-24886-02 is a self-priming, flexible impeller pump with a 24V DC motor, intended for multiple onboard duties including bilge pumping, deck wash use, circulation tasks, and refueling/transfer of oil and diesel. Its heavy-duty motor and integrated thermal overload protection help support dependable operation in demanding marine environments, while the compact design supports space-efficient installation.
Application
- Bilge pumping
- Deck washing
- Circulating applications
- Refueling/transfer for oil and diesel
Technical Specifications
Brand Johnson Pump Model / Part Number 10-24886-02 Pump Type Self-Priming Flexible Impeller Pump Pump Series F2P10-19 Voltage 24V DC Output (Free Flow) Up to 15 L/min Flow Rate (Description) 900 LPH (240 US GPH) Flow Rate at 1 Metre Head 870 LPH (228 US GPH) Flow Rate at 1.8 Metre Head 840 LPH (222 US GPH) Flow Rate at 3 Metre Head 810 LPH (216 US GPH) Flow Rate at 6 Metre Head 660 LPH (174 US GPH) Continuous Operation Up to max. 0.6 bar head pressure Self-Priming Up to 3 m under perfect conditions; also stated as up to 1.5 m (4.9 ft) Maximum Head Should not exceed 6 m Amperage 4.8A; also stated as 5.6A at 0 bar & 0 ft and 6.1A at 0.6 bar & 20.1 ft Fuse 8A Connections 13 mm (1/2 in) hose inner diameter (inlet/outlet) Dimensions (As Listed) 172 mm (L) x 117 mm (W) x 78 mm (H); also stated as 17.0 cm (L) x 11.7 cm (W) x 8.8 cm (H) Weight 1.6 kg Shipping Weight 2.00 kg Approvals ISO8846 Marine (Ignition), ISO8849 Marine (Bilge Pump), ISO10133 Small Craft (Low Voltage DC Installations)
Product Details
- Pump head: Plastic pump head
- Impeller: Oil-resistant nitrile impeller
- Wear plate: Stainless wear plate
- Body material: PTMT
- Construction (also stated): Thermoplastic polyester
- Housing (also stated): PA
- Shaft seal: Lip seal
- Replacement impeller: JP-09-1077B-9 (also listed as 09-1077B-9)
Features
- Heavy-duty motor for long service life
- Built-in thermal overload protection
- Self-priming capability for flexible installation
- Designed for bilge pumping, deck washing, circulation, and oil/diesel transfer
-
