ID
1330967
$ 412.93
1-2 weeks delivery time
-
+

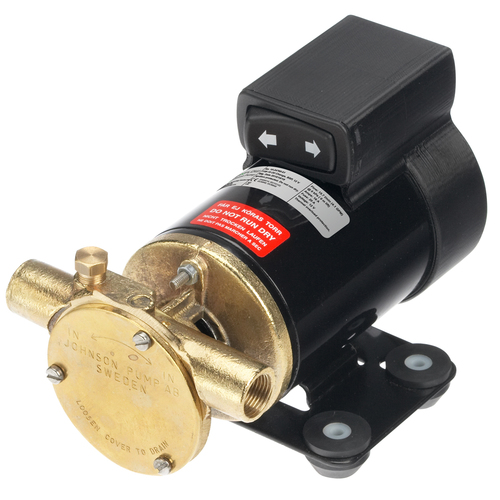

The Johnson Pump 10-24760-01 F3B-19 oil change impeller pump delivers 12V DC-powered draining and filling of engine oil with an integrated reversing switch for fast flow-direction changes. A heavy-duty motor with built-in thermal overload supports long service life, while the self-priming design can prime up to 3 m under perfect conditions. Built with a bronze body and brass pump head, it uses an oil-resistant nitrile impeller (09-843S-9) and a reliable lip seal, and connects via a 3/8" BSP female thread; output is stated as up to 15.7 l/min (10W-40 at 20°C) with a listed capacity of 21 l/min.
- Description
- Ask a Question
-
Johnson F3B-19 12V Oil Change Impeller Pump Unit
The Johnson Pump 10-24760-01 is a self-priming oil change impeller pump designed for permanent installation near boat engines. It supports efficient oil service by draining old oil and pumping fresh oil into the engine, with an integrated reversing switch to quickly change the flow direction.
Application
- Permanent installation near the boat engine
- Draining and filling engine oil
- Flow direction change via integrated reversing switch
Technical Specifications
Brand Johnson Pump Part Number 10-24760-01 Article Number 66102476001 Model F3B-19 EAN 8719182068082 Voltage 12V DC Amperage 16.1A Required Fuse 20A Output at Free Flow Up to 15.7 l/min (10W-40 oil at 20°C) Listed Capacity 21 l/min Self-Priming Up to 3 m under perfect conditions; maximum head should not exceed 6 m Continuous Operation Limit Up to max. 0.6 bar head pressure Connection 3/8" BSP female thread (R3/8") Dimensions (L × W × H) 170 mm × 113 mm × 115 mm (16.8 cm × 11.3 cm × 11.5 cm) Weight 2.1 kg (4.5 lbs) Shipping Weight 0.40 kg
Product Details
- Body/Housing: Bronze
- Pump Head: Brass
- Impeller: 09-843S-9 (contains nitrile impeller)
- Seal: Lip seal
- Motor Protection: Built-in thermal overload
- Product Portfolio: Oil change pumps; electric impeller pumps
Features
- Self-priming oil change pump for draining and filling engine oil
- Integrated reversing switch for easy direction change
- Heavy-duty motor designed for long service life under heavy use
- Oil-resistant nitrile impeller paired with a reliable lip seal
Included
- 3/8" stopcock
-
