The Johnson Pump 10-24886-01 self-priming impeller pump unit delivers up to 15 litres per minute on 12V DC power for versatile onboard transfer and washdown tasks. It is described as ideal for bilge pumping, deck cleaning, water circulation, shower tray emptying, and port-service refueling of oil and diesel, and it is also stated as suitable for water, oils, and chemicals. Built-in thermal overload protection supports dependable operation, while the nitrile flexible impeller, lip seal, and 1/2 inch (13 mm) hose connections help ensure practical, marine-ready installation and serviceability.
- Description
- Ask a Question
-

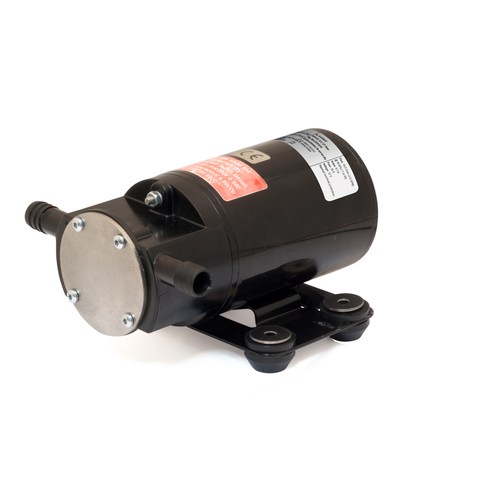

Johnson 10-24886-01 F2P10-19 Self-Priming 12V Impeller Pump Unit
The Johnson Pump 10-24886-01 is a flexible impeller pump with a 12V DC motor, built for general-purpose marine transfer and wash applications. It is described as a self-priming pump suited to moving water and other compatible fluids, with integrated thermal overload protection to help safeguard the motor during demanding use.
Application
- Bilge pumping
- Deck cleaning (deck wash)
- Water circulation
- Shower tray emptying
- Oil and diesel refueling at port service
- Suitable fluids stated in the input: water, oils, chemicals
Technical Specifications
Brand Johnson Pump Model / Part Number 10-24886-01 Pump Type Self-Priming Flexible Impeller Pump (F2P10-19) Rated Voltage 12V DC Output (Free Flow) Up to 15 L/min Flow Rate (Listed) 900 LPH (240 US GPH) at 0 meter head Flow Rate at 1 Metre Head (Listed) 870 LPH (228 US GPH) Flow Rate at 1.8 Metre Head (Listed) 840 LPH (222 US GPH) Flow Rate at 3 Metre Head (Listed) 810 LPH (216 US GPH) Flow Rate at 6 Metre Head (Listed) 660 LPH (174 US GPH) Output at 3 Metre Head (Listed) Approx. 13 L/min Self-Priming (Listed) Up to 1.5 metres (4.9 feet) Self-Priming (Under Perfect Conditions, Listed) Up to 3 m Maximum Head (Listed) Should not exceed 6 m Continuous Operation Capability (Listed) Up to max. 0.6 bar head pressure Power (Listed) 0.12 kW Amperage (Listed) 7.2 A; 6.5 A Fuse (Listed) 16 A; 10 A Hose Connection 1/2 inch hose connection (for 13 mm ID hose) Seal Type Lip seal Housing / Body Material (Listed) PA; PTMT Impeller (Included) Nitrile impeller Impeller Reference (Listed) 09-1077B-9 Replacement Impeller (Listed) JP-09-1077B-9 Wear Plate (Listed) Stainless wear plate Dimensions (L x W x H) 172 mm x 117 mm x 78 mm Weight 1.6 kg (3.5 lbs) Shipping Weight (Listed) 2.00 kg Approvals (Listed) ISO8846 Marine (Ignition), ISO8849 Marine (Bilge Pump), ISO10133 Small Craft (Low Voltage DC Installations)
Product Details
- Motor protection: Built-in thermal overload protection
- Connection style: Inlet/outlet sized for 13 mm (1/2 inch) hose inner diameter
- Impeller material: Nitrile (included)
Features
- Provides self-priming capability for easier suction-side pickup in onboard installations
- Supports multiple duties including bilge service, deck wash, circulation, and fluid transfer for oil and diesel at port service
- Thermal overload protection helps reduce the risk of motor damage during heavy use
-
