ID
1330972
$ 1,269.74
1-2 weeks delivery time
-
+
The Johnson Pump 10-24898-01 CM90P7-1 BL circulation unit delivers up to 115 litres per minute at 0.1 bar (90 l/min at 0.25 bar) for circulating water/antifreeze in heating systems and cooling fresh water/coolants in marine and vehicle installations. Its heavy-duty magnetic-driven, seal-less design provides leak-proof operation, supported by an IP67 waterproof and dustproof 12V DC brushless motor (nominal voltage 13.6V) for continuous duty with built-in thermal overload protection. Designed for demanding environments, it tolerates dry running for up to 30 minutes, operates with fresh water or water/glycol mixtures up to 60% glycol, and supports liquid temperatures from –40°C to +100°C and system pressures from 0.2 to 2.5 bar at 100°C, with a separate universal flat-surface mounting bracket and a 38 mm (1-1/2") hose connection.
- Description
- Ask a Question
-

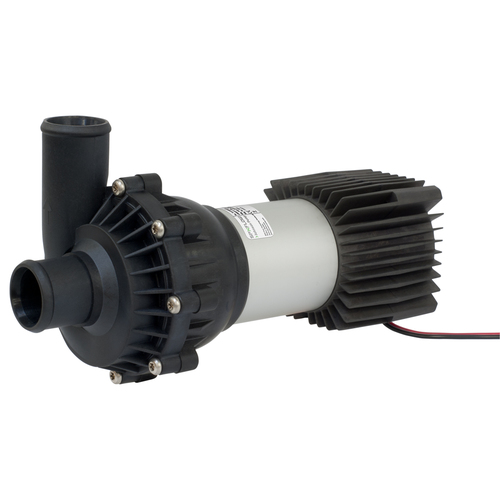

Johnson Pump 10-24898-01 Magnetic Drive Brushless Circulation Unit
The Johnson Pump 10-24898-01 circulation pump (CM90P7-1 BL) is built for high-capacity liquid circulation in heating and cooling systems across marine and vehicle applications. Its heavy-duty, seal-less magnetic drive supports leak-proof performance, while the 12V DC brushless motor is designed for continuous operation in demanding environments.
Application
- Heating system circulation for water/antifreeze
- Cooling circulation for fresh water/coolants in vehicles
- Boats
- Trains
- Buses
- Commercial vehicles
- Recreational vehicles
- Motorhomes
- Direct replacement for many original equipment intercooler circulation pumps
Technical Specifications
Brand SPX Johnson Pump Product Portfolio Circulation Pumps Pump Type Heavy-Duty Circulation Pump, Magnetic-Driven, Seal-Less Model CM90P7-1 BL Voltage 12V DC (Nominal Voltage 13.6V) Current 10A Recommended Fuse 12A Max Power Input 125W Ingress Protection IP67 (Waterproof and Dustproof) Flow Rate 115 litres/min at 0.1 bar; 90 l/min at 0.25 bar System Pressure 0.2 to 2.5 bar at 100°C Compatible Liquids Fresh water or water/glycol mixture (max 60% glycol) Liquid Temperature Range –40°C to +100°C Ambient Operating Temperature –40°C to +70°C Connection For 38 mm (1-1/2") hose inner diameter Mounting Separate universal bracket for flat surfaces included Dimensions (H × W × L) 15.0 cm × 12.1 cm × 27.2 cm Weight 3.0 kg (2.8 kg without bracket) Shipping Weight 4.50 kg Article Number 66102489801 EAN 8719182068440
Product Details
- Motor: Permanently lubricated ball bearing brushless motor
- Service Rating: Up to 20,000 hours of uninterrupted service
- Protection: Built-in thermal overload protection
- Start Performance: High torque for safe starts under difficult conditions
- Priming: Non-self-priming; requires flooded suction
- Dry-Run Tolerance: Withstands dry running for up to 30 minutes
Features
- Leak-proof seal-less, magnetic-driven construction
- IP67 waterproof and dustproof design for harsh operating environments
- Continuous-duty 12V DC operation (nominal voltage 13.6V)
- High-capacity circulation performance up to 115 litres/min at 0.1 bar
- Universal bracket included for straightforward flat-surface mounting
-
