ID
1330973
$ 1,269.74
1-2 weeks delivery time
-
+
The Johnson Pump 10-24898-02 CM90P7-1 BL circulation pump delivers continuous-duty flow for water or water/glycol mixtures (up to 60% glycol) in heating and cooling circuits. It uses a brushless 12/24 V DC permanent-magnet motor with IP67 protection and a seal-less, magnetically driven design for long service life. With hose connections for 20 mm (3/4 inch) or 38 mm (1-1/4 inch) lines, a maximum system pressure of 2.5 bar, and liquid temperature capability from -40°C to +100°C, it supports demanding installations, and includes a universal holder for mounting on flat surfaces. This model is stated as no longer available, with Johnson Pump 10-13607-10 listed as the closest replacement.
- Description
- Ask a Question
-

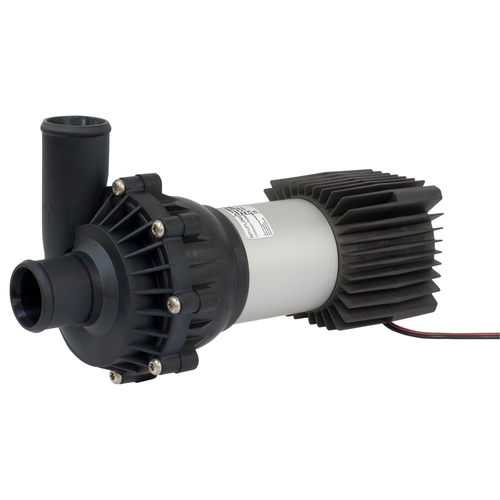

Johnson Pump 10-24898-02 CM90P7-1 BL Circulation Unit (24 V, 38 mm)
The Johnson Pump 10-24898-02 is a heavy-duty circulation pump intended for continuous operation in closed-loop heating and cooling applications. It is designed for circulating fresh water or water/glycol mixtures where self-priming is not required, and it is specified as a normal-priming centrifugal pump that must be installed flooded or primed before use.
Application
- Heating systems for cars, boats, and recreational vehicles
- Cooling systems for circulating fresh water in vehicles
- General circulation tasks where self-priming is not required
Technical Specifications
Product Type Circulation pump Model CM90P7-1 BL Part Number 10-24898-02 Article Number 66102489802 EAN 8719182068440 Pump Housing Material PPA (fiberglass reinforced stated) Impeller Material PA12 Shaft Material Stainless steel Motor 12/24 V DC, brushless, enclosed permanent magnet, ball bearings Protection Rating IP67 Suitable Duty Continuous operation Flow Media Water/glycol mixture (maximum 60% glycol), fresh water Liquid Temperature Range Minimum -40°C, maximum +100°C Maximum System Pressure 2.5 bar Flow Rate 115 L/min at 0.1 bar Capacity 55/115 L/min Power Consumption Maximum 125 W Dry Running Maximum 30 minutes Hose Connection Options 20 mm (3/4 inch) or 38 mm (1-1/4 inch); also stated as 1-1/2 inch hose connection Dimensions (L x W x H) 272 mm x 121 mm x 150 mm Weight 3.0 kg (6.6 lbs) Shipping Weight 4.50 kg Voltage (Additional Listing) 24V 27.2V
Product Details
- Pump design: Seal-less, magnetically driven circulation pump
- Pump type: Normal-priming centrifugal pump; must be installed flooded or primed before use
- Mounting: Universal holder for flat surfaces (included); includes mounting bracket
Features
- IP67 protection supports reliable operation in demanding environments
- Brushless DC motor with ball bearings for continuous-duty service
- Compatible with water/glycol mixtures up to 60% glycol across a wide temperature range
Operating Notes
- Not suitable for pumping soiled water or fluids containing hard particles
- Avoid pumping gasoline, solvents, thinners, and highly concentrated or organic acids; flush with water after use if handling corrosive fluids
Availability
Not available anymore. Closest replacement stated: Johnson Pump 10-13607-10.
-
