The Johnson Pump 10-24752-11 self-priming cooling-water impeller pump delivers dependable engine cooling with a flange-mounted bronze body and 19 mm hose ports. Built in pump size F4 with a 1/1 cam version, it drives via conical mounting at the shaft end and uses an M10 thread for a lock nut. Supplied with the MC97 impeller, it is commonly used on a wide range of Perkins and Volvo Penta engine models and serves as an alternative to SPX Johnson Pump 10-24752-01 and Volvo Penta 3593655.
- Description
- Ask a Question
-

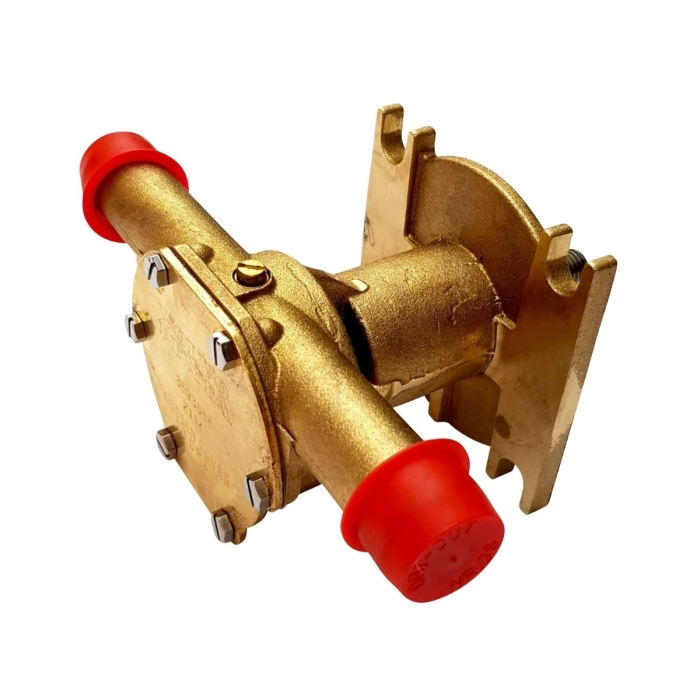

Self-Priming Johnson Pump 10-24752-11 F4B-9 Engine Cooling Pump
The Johnson Pump 10-24752-11 is a self-priming impeller pump designed for engine cooling water circulation. With a robust flange-mounted bronze body and a drive arrangement intended for secure marine installation, it is commonly found on Perkins and Volvo Penta engines and is supplied with the specified MC97 impeller.
Application
- Engine cooling (cooling water pump)
- Often found on Perkins and Volvo Penta engines
Compatibility
- Perkins D1-30 A engines
- Perkins D1-30 B engines
- Perkins D2-40 A engines
- Perkins D2-40 B engines
- Perkins D2-55 A engines
- Perkins D2-55 B engines
- Perkins D2-55 C engines
- Perkins D2-55 D engines
- Perkins D2-55 E engines
- Perkins D2-75 A engines
- Perkins D2-75 B engines
- Perkins D2-75 C engines
- Volvo Penta MD2010-C engines
- Volvo Penta MD2010-D engines
- Volvo Penta MD2020-C engines
- Volvo Penta MD2020-D engines
- Volvo Penta MD2030-C engines
- Volvo Penta MD2030-D engines
- Volvo Penta MD2040-C engines
- Volvo Penta MD2040-D engines
- Volvo Penta 120S-D engines
- Volvo Penta 120S-E engines
- Volvo Penta MD2010B engines
- Volvo Penta MD2020B engines
- Volvo Penta MD2030B engines
- Volvo Penta MD2040B engines
- Volvo Penta MS2L-D engines
- Volvo Penta MS2A-D engines
- Volvo Penta MS2B-R engines
- Volvo Penta MS2A-E engines
- Volvo Penta MS2L-E engines
- Perkins D1-13 engines
- Perkins D1-13B engines
- Perkins D1-20 engines
- Perkins D1-20B engines
- Perkins D1-30 engines
- Perkins D1-30B engines
- Perkins D2-40 engines
- Perkins D2-40B engines
- Perkins D1-13F engines
- Perkins D1-20F engines
- Perkins D1-30F engines
- Perkins D2-40F engines
- Volvo Penta MD2010A engines
- Volvo Penta MD2020A engines
- Volvo Penta MD2030A engines
- Volvo Penta MD2040A engines
- Volvo Penta MD2010 engines
- Volvo Penta MD2020 engines
- Volvo Penta MD2030 engines
- Volvo Penta MD2040 engines
Technical Specifications
Brand Johnson Pump Part Number 10-24752-11 Article Number 66102475211 Pump Type Self-priming engine cooling impeller pump Pump Size F4 Model Reference F4B-9 Cam Version 1/1 Body Material Bronze Mounting Type Flange Drive Conical mounting via shaft end Shaft End Shaft with thread Thread M10 thread for lock nut Impeller Included MC97 Impeller Hub Slotted Shaft Pin Drive Connections 19 mm hose ports; 3/4" hose connection Shipping Weight 1.50 kg Product Portfolio Impeller pumps; cooling water pumps
Product Details
- Alternative to: SPX Johnson Pump 10-24752-01 (OEM)
- Predecessor: Johnson Pump 10-24465-01
- Alternative to: Volvo Penta 3593655
- Predecessor: Volvo Penta 3580945
- Spare Part Overview (listed): Impeller kit 09-1026B-1; wear kit 09-47551-102; shaft kit 09-47552-103; screw kit 09-47553-101
Features
- Self-priming operation to support reliable engine cooling water circulation
- Flange-mounted bronze construction for marine-duty durability
- 19 mm hose port connections for straightforward installation
- Supplied with MC97 impeller
-
