The Johnson Pump 10-13177-01 flexible impeller pump is a pedestal-mounted, self-priming bronze unit built for demanding marine duties including cooling water circulation, bilge pumping, deck cleaning, emergency service, and fire pump use. A separate bearing housing, mechanical seal, and permanently lubricated double ball bearings help reduce wear for long service life, while the stainless steel shaft and stainless steel cover support durable operation. With 2 inch BSP connections via an F9 flange adapter and a capacity around 388–389 l/min (max. 388 l/min at 2000 rpm), it delivers high flow in a compact 282 x 200 x 151 mm footprint at 9.3 kg, with service and impeller kits available for maintenance.
- Description
- Ask a Question
-

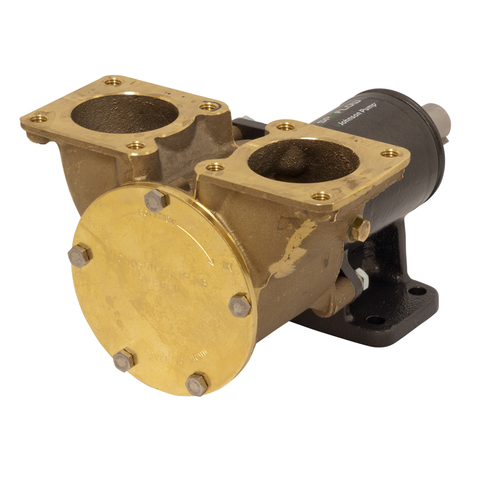

Johnson Pump 10-13177-01 High Performance Flexible Impeller Unit
The Johnson Pump 10-13177-01 is a pedestal-mounted, self-priming flexible impeller pump designed for versatile use at sea. Built around a robust bronze housing and wear-reducing internal design, it supports dependable pumping for onboard service systems where durability and serviceability matter.
Application
- Cooling water pumping
- Bilge pumping
- Deck cleaning
- Wash-down
- Emergency use
- Fire pump use
- Emptying holding tanks (use a different impeller if necessary)
- Liquid circulation and transfer
- Emptying tanks and sump drainage
- Handling solids in suspension (use a different impeller if necessary)
Technical Specifications
Brand Johnson Pump Part Number 10-13177-01 Article Number 66101317701 EAN 8719182063049 Pump Type Self-priming flexible impeller pump Mounting Pedestal mounted; base mount; flange Model F9B-3000TSS Flange / Adapter Flange for F9 flange adapter Connections 2 inch BSP; BSP or NPT; flange adapter; port adapter kit Flow Rate Capacity: 389 l/min; Max. 388 l/min at 2000 rpm Cam Version 1/1; full or partial comb Pump Housing Material Bronze Shaft Material Stainless steel Seal Type Mechanical seal Socket / Bearing Arrangement Cast iron socket with permanently lubricated double ball bearings Drive / Shaft End Drive via 24 mm shaft end with 8 mm key; ribbed segment key Drive Shaft Diameter 17 mm Shaft Dimension 24 mm Impeller 09-802B-1; 09-814B-9 available on request; includes neoprene impeller Dimensions (L x W x H) 282 x 200 x 151 mm Weight 9.3 kg Shipping Weight 11.00 kg
Product Details
- High-performance impeller pump with separate bearing housing and shaft seal to help reduce wear
- Pump housing includes a connection for a vacuum switch (vacuum switch optionally available)
- Wearing parts are designed for easy replacement, with service kits available for standard models
- Stainless steel cover included (as listed for the F9B-3000TSS configuration)
- Available in sizes from 3/4 inch to 2 1/2 inch (13 l/min up to 625 l/min range stated for the series)
Features
- Self-priming flexible impeller design
- Bronze housing for marine-duty durability
- Mechanical seal for dependable sealing performance
- Permanently lubricated double ball bearings to support reduced wear and tear
- Optional items listed include a vacuum switch and alternative impellers (nitrile impeller available on request)
Service and Spare Parts (Listed)
- Service kit: 09-45581
- Impeller kit: 09-802B
-
