ID
1330887
$ 1,656.95
1-2 weeks delivery time
-
+
The Johnson Pump 10-13175-01 flexible impeller pump unit (F8B-3000TSS) delivers high-performance, self-priming liquid circulation and transfer for marine duties such as cooling water, bilge, deck wash, emergency, and fire pump service. A bronze pump housing, separate bearing housing, stainless steel shaft, and mechanical seal help reduce wear for a longer service life, while the vacuum switch connection supports optional vacuum switch use. Supplied with a neoprene impeller and designed for F8 flange adapter connection with a 1-1/2" BSP thread, it provides up to 279 l/min at 2000 rpm in a compact 255 x 198 x 151 mm footprint with a 7.6 kg listed weight.
- Description
- Ask a Question
-

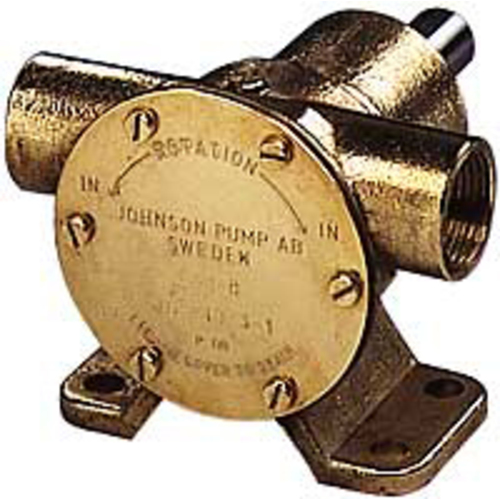

Johnson Pump 10-13175-01 Flexible Impeller Pump Unit F8B-3000TSS
Built for demanding marine service, this self-priming flexible impeller pump combines a bronze pump body with a dedicated bearing arrangement and mechanical sealing to support strong performance and reduced wear. It is intended for versatile onboard pumping and circulation tasks where dependable flow and serviceability matter.
Application
- Marine: engine cooling
- Marine: bilge pumping
- Marine: deck wash and wash-down
- Marine: emergency and fire pump applications
- Marine: emptying holding tanks (use a different impeller if necessary)
- Industry: liquid circulation and transfer
- Industry: emptying tanks and sump drainage
- Industry: handling of solids in suspension (use a different impeller if necessary)
Technical Specifications
Brand Johnson Pump Part Number 10-13175-01 Article Number 66101317501 EAN 8719182063049 Pump Type Self-priming flexible impeller pump Model F8B-3000TSS Mounting Pedestal mounted (also listed as base/foot mounting) Mounting Type Flange Connection Flange for F8 flange adapter with 1-1/2" BSP thread Additional Connection Information BSP or NPT (listed); port adapter kit (listed) Maximum Flow 279 l/min at 2000 rpm Housing Material Bronze Shaft Material Stainless steel Seal Type Mechanical seal Bearing Arrangement Cast iron socket with permanently lubricated double ball bearings Cam Version 1/1 (cam listed as full or partial comb) Impeller Neoprene (included); nitrile and alternative impellers available on request Impeller Part Number (Listed) 09-819B-1 (also listed: 09-819B-9; also listed: 6609819B/B9) Drive / Shaft End Drive via 24 mm shaft end with 8 mm key (also listed: drive shaft diameter 17 mm); ribbed segment key (listed) Vacuum Switch Connection Yes (vacuum switch available as an accessory) Dimensions (L x W x H) 255 mm x 198 mm x 151 mm Weight 7.6 kg (also listed: 16.5 lbs) Shipping Weight 9.20 kg Product Portfolio (Listed) Impeller pumps; cooling water pumps
Product Details
- Pump housing includes a connection for a vacuum switch (optional accessory).
- Separate bearing housing and shaft sealing are specified for reduced wear and longer lifespan.
- Wearing parts are designed to be easily replaceable, with service kits available for standard models.
- Service kit (listed): 09-45579
- Impeller kit (listed): 09-819B
Features
- High-performance flexible impeller design for demanding marine operation
- Mechanical seal and bearing arrangement specified for reduced wear
- F8 flange adapter connection with 1-1/2" BSP thread for straightforward integration
- Up to 279 l/min maximum flow at 2000 rpm for high-capacity transfer
-
