ID
1332413
$ 2,218.93
1-2 weeks delivery time
-
+

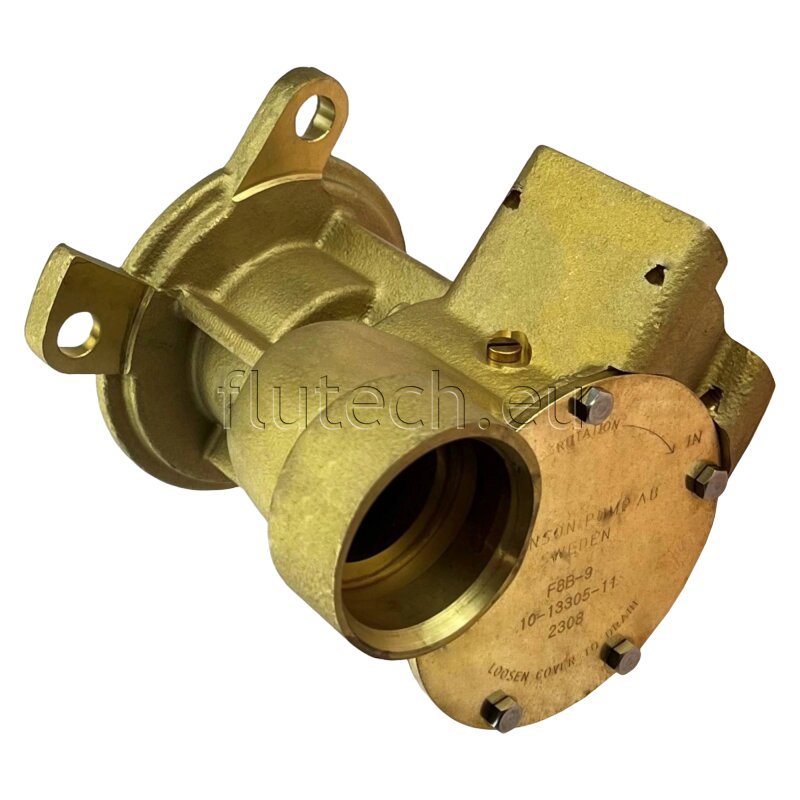

The Johnson Pump 10-13305-11 bronze impeller pump is a self-priming cooling water unit in size F8 for flange-mounted installations. A helical-tooth gear drive and spline-drive impeller hub support dependable operation, while the included neoprene impeller and seawater cooling-water design suit demanding marine engine rooms. It features a 53.7 mm inner-diameter plug-in intake connection and a 79 mm x 79 mm flange connection with 41 mm inner diameter, and it is frequently used on multiple Volvo Penta TAMD engine models.
- Description
- Ask a Question
-
Johnson Pump 10-13305-11 F8B-9 Bronze Impeller Cooling Water Unit
Built for marine cooling circuits, the Johnson Pump 10-13305-11 is a self-priming impeller pump with a bronze body for flange mounting. It is supplied with a neoprene impeller and uses a helical-tooth gear drive to support consistent cooling-water circulation.
Application
- Cooling water pump (self-priming), size F8
- Flange-mounted bronze pump body
- Cam version: 1/1
Compatibility
- Volvo Penta TAMD74A
- Volvo Penta TAMD74A-A
- Volvo Penta TAMD74A-B
- Volvo Penta TAMD74C-A
- Volvo Penta TAMD74C-B
- Volvo Penta TAMD74L-A
- Volvo Penta TAMD74L-B
- Volvo Penta TAMD74P-A
- Volvo Penta TAMD74P-B
- Volvo Penta TAMD75P-A
- Volvo Penta TAMD71B
- Volvo Penta TAMD73P-A
- Volvo Penta TAMD73WJ-A
Technical Specifications
Brand Johnson Pump Part Number 10-13305-11 Pump Type Impeller pump; cooling water pump Model / Size F8B-9 (size F8) Version Flange version Material Bronze Mounting Type Flange Drive / Shaft End Gear with helical teeth Impeller Hub Spline drive Connections 53.7 mm inner diameter plug-in connection; 79 mm x 79 mm flange with 41 mm inner diameter
Product Details
- Supplied impeller: Neoprene impeller included
- Alternative to: Johnson Pump 10-13305-01 (OEM)
- Volvo Penta reference: 3836564
Features
- Self-priming cooling water pump design
- Bronze construction for flange mounting
- Gear-driven operation with helical teeth
- Defined connection geometry for plug-in intake and flange outlet interface
-
