ID
1331210
$ 1,948.09
1-2 weeks delivery time
-
+
The Johnson Pump 10-13248-01 impeller pump unit (F95B-9) provides robust, self-priming circulation for engine cooling and other marine applications with a flange-mounted bronze body. An electromagnetic clutch with touch-button activation supports heavy-duty operation, while automatic clutch disengagement (when paired with a vacuum switch) helps prevent dry running and pump damage. The pump is supplied with an MC97 impeller and is built with a stainless steel shaft, permanently lubricated double ball bearings, and a mechanical seal for reliable service and simplified maintenance with replaceable wear parts and service kits.
- Description
- Ask a Question
-

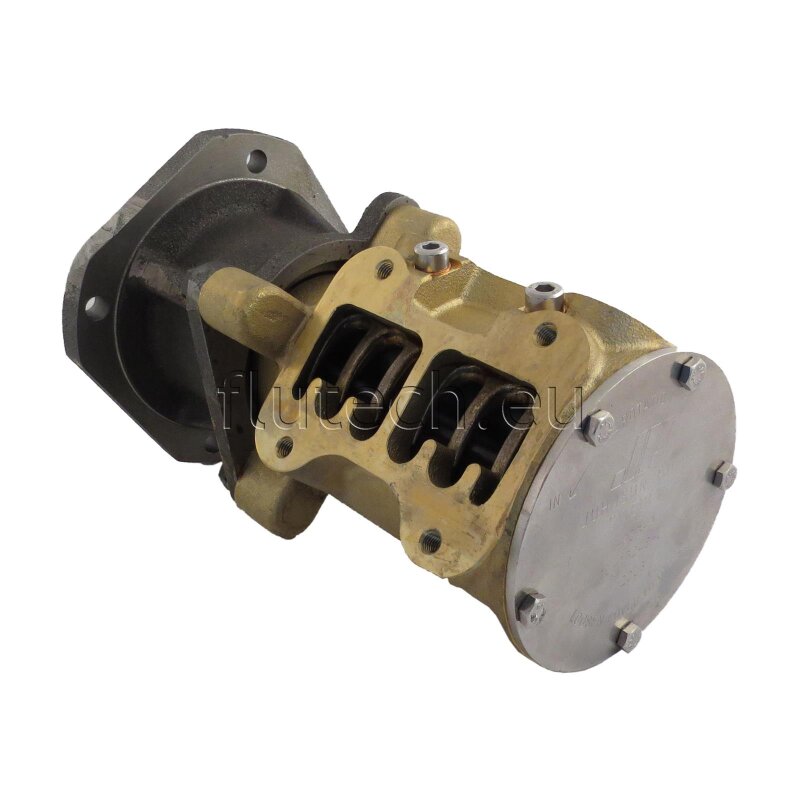

Johnson 10-13248-01 F95B-9 Flange Impeller Pump Unit
The Johnson Pump F95B-9 is an OEM impeller pump designed for heavy-duty operation and dependable fluid transfer in marine and engine cooling duties. Its flange-mounted construction and electromagnetic clutch control add convenience, while the option for automatic clutch disengagement (with a vacuum switch) helps protect the pump against dry running.
Application
- Self-priming engine cooling pump (size F95)
- Cooling water pump applications
- Can be used as a bilge pump (vacuum switch recommended for automatic clutch disengagement when air is detected)
Compatibility
- Often found on Deutz engines
- Alternative to Deutz 4228548
- Alternative to Deutz 04228548
- Alternative to Johnson Pump 10-13248-02 (F95B-903) (same pump except for the cam; cam must be replaced with the 2/3 cam 01-35854)
- Alternative to Deutz 4228547 (for the 10-13248-02 reference)
- Alternative to Deutz 04228547 (for the 10-13248-02 reference)
Technical Specifications
Brand Johnson Pump Part Number 10-13248-01 Pump Type Impeller pump Model / Size F95B-9 (size F95) Mounting Type Flange Flange Connection Special 124 mm x 93 mm flange Connection 1 1/2" BSP Pump Housing Material Bronze Shaft Stainless steel with permanently lubricated double ball bearings Seal Type Mechanical seal Cam 1/1 cam version (cam listed as solid or split comb) Clutch Electromagnetic, 12/24 V DC Pulley Available in 2xA groove or 1xB groove Pulley Diameter 178 mm (7") Impeller 09-819B (includes MC97 impeller) Dimensions (L x H x W) 225 mm x 160 mm x 124 mm Weight 9.9 kg (22 lbs) Shipping Weight 12.50 kg Impeller Hub Spline drive Drive / Shaft End Shaft with thread
Product Details
- Flange-mounted bronze body for durable service in demanding environments
- Drive via conical mounting with woodruff key and M16 thread for lock nut
- Coupling needs to be ordered separately
- Replaceable wear parts and service kits are available for standard models
Features
- Electromagnetic clutch supports heavy-duty operation
- Touch-button operation for convenient activation
- Automatic clutch disengagement can be achieved with a vacuum switch to help prevent dry running
- Available with clutches in 12 V or 24 V configurations
- Series availability noted from 1" to 2 1/2" and 20 liters/min to 625 liters/min
-
