ID
1007051
$ 2,117.63
1-2 weeks delivery time
-
+
The SPX Johnson Pump 10-13226-99 impeller pump unit (F9B-5600, flanged) delivers heavy-duty, on-demand pumping with an electromagnetic clutch that can be used with a vacuum switch for bilge applications to automatically disengage and help prevent dry running and pump damage. A bronze housing, stainless steel shaft with permanently lubricated double ball bearings, and a mechanical seal support long service life, while the flange adapter connection, spline-drive impeller hub, and coupling drive/shaft end simplify integration. The 12/24 V DC clutch design works with a 2xA or 1xB groove pulley (178 mm diameter), and replaceable wear parts plus available service kits help keep maintenance straightforward.
- Description
- Ask a Question
-

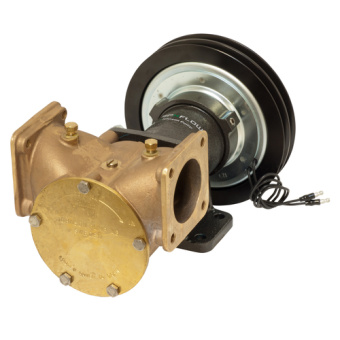

SPX Johnson Pump 10-13226-99 Heavy-Duty Flanged Impeller Pump Unit
The SPX Johnson Pump 10-13226-99 is a flanged F9B-5600 impeller pump designed for heavy-duty marine pumping where controlled, on-demand operation is required. Its electromagnetic clutch concept provides push-button convenience, and when used with a vacuum switch (recommended for bilge pump applications) the clutch disengages automatically when air is drawn in to help prevent dry running and damage.
Application
- Heavy-duty pumping applications
- Bilge pump applications when used with a vacuum switch (recommended)
Technical Specifications
Brand SPX Johnson Pump Product Portfolio Impeller Pumps Part Number 10-13226-99 Pump Type Impeller Pump Model F9B-5600 Connection Flange Adapter Mounting Type Flange Drive/Shaft End Coupling Impeller Hub Spline Drive Clutch Type Electromagnetic Clutch Voltage 12/24 V DC Pulley 2xA or 1xB Groove Pulley Diameter 178 mm (7 in) Available Sizes Range 1 in to 2 1/2 in Flow Range 20 l/min to 625 l/min Weight 13.2 kg (27 lbs) Shipping Weight 10.30 kg Dimensions (L x H x W) 290 mm x 200 mm x 151 mm (11.4 in x 7.87 in x 5.94 in)
Product Details
- Housing material: Bronze
- Shaft: Stainless steel shaft with permanently lubricated double ball bearings
- Seal: Mechanical seal
- Cam: Full or partial comb
- Vacuum switch connection: Connection provided
- Connection option noted: Port Adaptor Kit
- Impeller: 09-802B (09-814B)
- Optional impeller: Pump with nitrile impeller available on request
Features
- Electromagnetic clutch enables on-demand operation without being physically present at the pump
- With a vacuum switch, the clutch disengages automatically when air is drawn in to help prevent dry running and damage
- Wear parts are designed to be easily replaceable
- Service kits are available for standard models
- Vacuum switch is available as an accessory
- Coupling must be ordered separately
Service and Wear Part References (As Listed)
- Service kit: 09-45582
- Impeller kit: 09-814B
-
