ID
1331211
$ 2,361.04
1-2 weeks delivery time
-
+

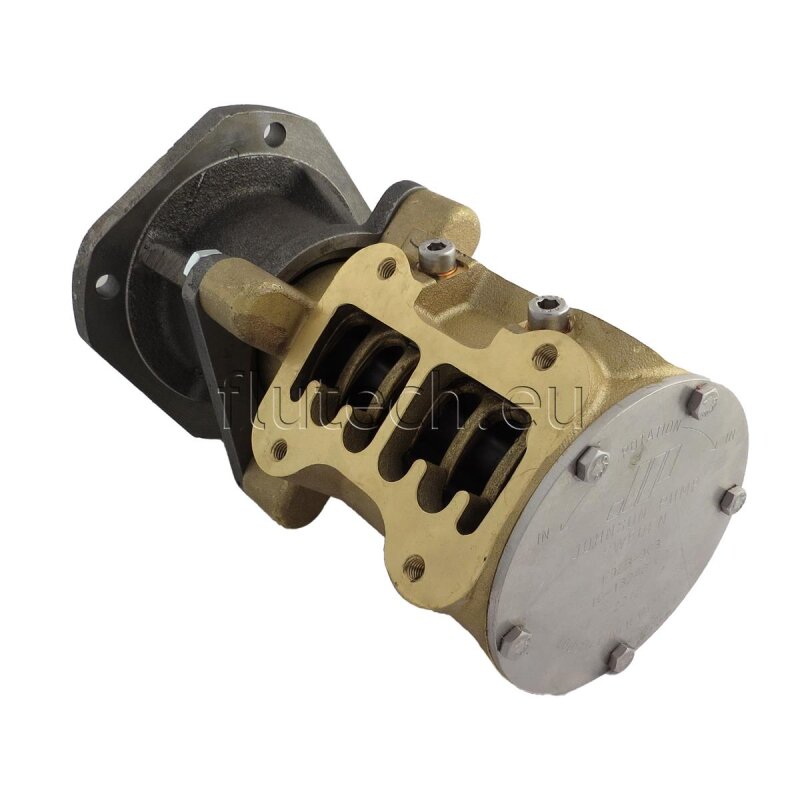

The Johnson Pump 10-13248-02 self-priming engine cooling pump is a size F95 impeller pump with a 2/3 cam version, built around a flange-mounted bronze body for durable marine-duty service. It uses a conical drive mounting with a woodruff key and an M16 thread for a secure lock nut, and it is supplied with an MC97 impeller for efficient cooling-water circulation. Special 124 mm x 93 mm flange connections support common Deutz engine fitments and provide a direct alternative to Johnson Pump 10-13248-02 and 10-13248-01 references, including listed Deutz cross-numbers.
- Description
- Ask a Question
-
Johnson Pump 10-13248-02 F95 Self-Priming Engine Cooling Unit
The Johnson Pump 10-13248-02 is a self-priming engine cooling impeller pump in size F95, configured with a 2/3 cam. With a flange-mounted bronze body and special flange connections, it is commonly used on Deutz engines where dependable cooling-water circulation and secure mounting are required.
Application
- Engine cooling (cooling water pump)
- Often found on Deutz engines
Compatibility
- Alternative to SPX Johnson Pump 10-13248-02 (F95B-903)
- Alternative to Deutz 4228547
- Alternative to Deutz 04228547
- Alternative to SPX Johnson Pump 10-13248-01 (F95B-9)
- Alternative to Deutz 4228548
- Alternative to Deutz 04228548
Note: The pump can substitute the 10-13248-01 version; the pumps are described as identical except for the cam. For the latter, the cam must be replaced with the 1/1 cam 01-35744.
Technical Specifications
Brand Johnson Pump Type Impeller pump / cooling water pump Pump Size F95 Model Reference F95B-903 Cam Version 2/3 Impeller MC97 Body Material Bronze Mounting Type Flange (flange-mounted) Connection Flange adapter Flange Connections Special 124 mm x 93 mm flange Impeller Hub Spline drive Drive / Shaft End Shaft with thread Drive Mounting Conical mounting with woodruff key Lock Nut Thread M16 Shipping Weight 12.50 kg
Product Details
- Self-priming design for engine cooling duties
- Flange-mounted bronze body for durable service
- MC97 impeller included
- Conical drive mounting with woodruff key and M16 lock nut thread for secure installation
Features
- Self-priming engine cooling pump (size F95)
- 2/3 cam version
- Special 124 mm x 93 mm flange connections
- Common fitment on Deutz engines
-
