ID
1330889
$ 1,671.73
1-2 weeks delivery time
-
+
The Johnson Pump 10-13225-01 flexible impeller pump (F9B-3000VF) delivers enhanced power and performance for demanding seafaring duties, supporting uses such as cooling water, bilge, deck cleaning, emergency, and fire pumping. It combines a bronze pump housing with a separate bearing housing, stainless steel shaft, permanently lubricated double ball bearings, and a mechanical seal to reduce wear and extend service life. This self-priming unit is offered with F9 flange/adapter connections including 2 in BSP, includes a neoprene impeller, and provides up to 388–389 l/min flow (max. 388 l/min at 2000 rpm) in a compact 282 x 152 x 175 mm package.
- Description
- Ask a Question
-

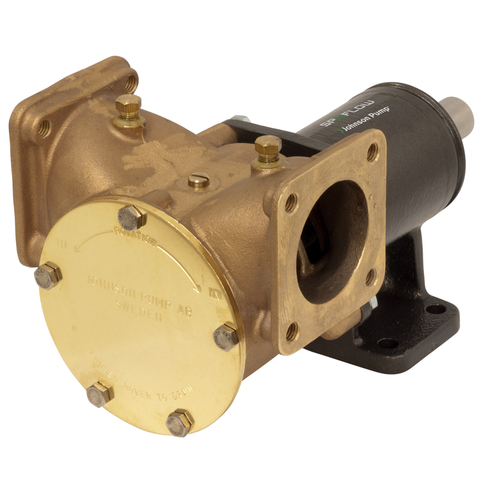

Johnson Pump 10-13225-01 F9B-3000VF Flexible Impeller Pump Unit
The Johnson Pump 10-13225-01 is an Extra Heavy Duty flexible impeller pump designed for high-performance marine service. Built for reduced wear and long life, it combines a robust pump construction with serviceable wearing parts and available service kits, making it a practical choice for vessels that need dependable water movement across multiple onboard tasks.
Application
- Cooling water pump
- Bilge pump
- Deck cleaning / deck-wash / wash-down pump
- Emergency pump
- Fire pump
- Emptying holding tanks (use different impeller if necessary)
Compatibility
- Marine applications (seafaring use)
- Industrial applications: liquid circulation and transfer, emptying tanks and sump drainage, handling solids in suspension (use different impeller if necessary)
Technical Specifications
Brand Johnson Pump Part Number 10-13225-01 Model F9B-3000VF Article Number 66101322501 EAN 8719182063049 Pump Type Self-priming flexible impeller pump Max Flow Rate (Listed) 388 litres/minute at 2000 rpm Capacity (Listed) 389 l/min Size Range (Series Availability) 3/4 in to 2 1/2 in (13 l/min up to 625 l/min) Housing Material Bronze Shaft Material Stainless steel Seal Type Mechanical seal Bearing Arrangement Two permanently lubricated double ball bearings Base / Socket Material Cast iron Connections (Listed) BSP or NPT; flange for F9 flange adapter with 2 in BSP thread; 2 in BSP Connection Type (Listed) Flange adapter Mounting Type (Listed) Pedestal mounted; base mount; foot mounting; flange Drive / Shaft End (Listed) 24 mm shaft end with 8 mm key; ribbed segment key Drive Shaft Diameter (Listed) 24 mm Drive Shaft Diameter (Listed) 17 mm Cam Version (Listed) 1/1; full or partial comb Impeller (Listed) 09-802B-1; 09-814B-9 Impeller (Listed) Art. 6609802B/814B9 Impeller Hub (Listed) Spline drive Included Impeller Neoprene impeller Dimensions (L x W x H) 282 x 152 x 175 mm Weight (Listed) 9.3 kg (21 lbs) Shipping Weight (Listed) 10.50 kg
Product Details
- Extra Heavy Duty impeller pump design with separate bearing housing and shaft seal for prolonged durability
- Pump housing includes a vacuum switch connection (vacuum switch available as an accessory)
- Replaceable wearing parts; service kits available for standard models
- Listed as including a mechanical seal and a stainless steel cover
- Port adapter kit connection is listed
Features
- Self-priming operation
- Flexible impeller technology for versatile pumping duties
- Designed for marine service including engine cooling, bilge duty, deck wash, emergency, and fire applications
- Nitrile impeller available on request
- Alternative impeller available on request
Service and Spare Parts (Listed)
- Service kit: 09-45581
- Impeller kit: 09-802B
-
