ID
1332411
$ 2,218.93
1-2 weeks delivery time
-
+

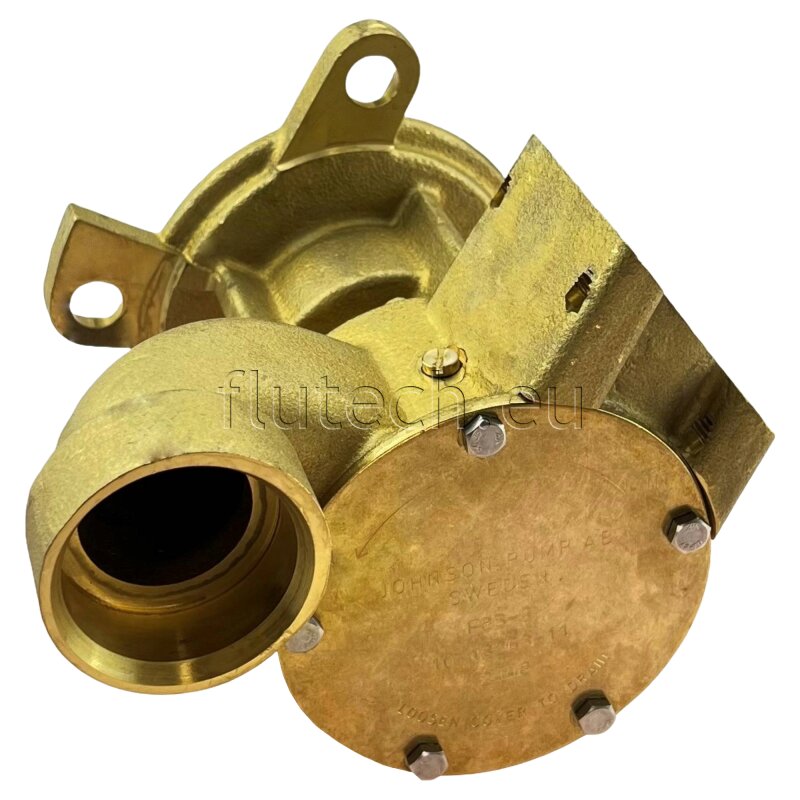

The Johnson Pump 10-13263-11 bronze impeller pump is a self-priming cooling water pump in size F8B-9, built with a bronze pump body for flange mounting in marine engine cooling applications. It includes a neoprene impeller and uses a 1/1 cam version for reliable operation, with drive via a 20 mm shaft end featuring a crescent spring and an M12 thread for a lock nut. The flange version provides a 53.7 mm inner diameter plug-in intake connection plus a 79 mm x 79 mm flange connection with a 41 mm inner diameter, and it is frequently used on multiple Volvo Penta TAMD engine models.
- Description
- Ask a Question
-
Johnson Pump 10-13263-11 F8B-9 Bronze Cooling Water Impeller Unit
This Johnson Pump bronze impeller pump is a self-priming cooling water pump designed in size F8 for marine engine cooling duties. The flange-mount bronze body and included neoprene impeller support dependable seawater circulation where robust construction and secure connections are required.
Application
- Cooling water pump (self-priming), size F8
- Flange-mounted marine circulation and cooling water applications
Compatibility
Frequently used on Volvo Penta (VP) engines:
- TAMD74A
- TAMD74A-A
- TAMD74A-B
- TAMD74C-A
- TAMD74C-B
- TAMD74L-A
- TAMD74L-B
- TAMD74P-A
- TAMD74P-B
- TAMD75P-A
- TAMD71B
- TAMD73P-A
- TAMD73WJ-A
Technical Specifications
Brand Johnson Pump Part Number 10-13263-11 Pump Type Bronze Impeller Pump Size F8 (F8B-9) Cam Version 1/1 Material Bronze Mounting Type Flange Impeller Included Neoprene impeller Impeller Hub Spline Drive Connections 53.7 mm inner diameter plug-in connection; 79 mm x 79 mm flange with 41 mm inner diameter Drive / Shaft End Drive via 20 mm shaft end with crescent spring, M12 thread for lock nut; shaft with key and thread Shipping Weight 9.30 kg Product Portfolio Impeller Pumps; Cooling Water Pumps
Product Details
- Version: Flange version
- Pump body: Bronze pump body for flange mounting
- Connection types: Flange; plug-in connection
- Alternatives / References: Alternative to Johnson Pump 10-13263-01 (OEM) and Johnson Pump 10-13263-11 (Open Market); Volvo Penta (VP) 3830699
Features
- Self-priming cooling water pump design
- Bronze construction for flange mounting
- Includes neoprene impeller
- Defined connection geometry for plug-in intake and flange connection
-
