The Johnson Pump 10-13607-10 circulation pump is a heavy duty, high-pressure, magnetic-drive, seal-less unit built for demanding heating and cooling circulation duties. A brushless 24V DC motor (nominal voltage 27.2V) supports continuous operation, while the leak-proof design and IP6K9K/IP67 protection help it perform in harsh environments. It connects to a Ø38 mm (1-1/2 in) hose and delivers flow rates up to 78 L/min, with integrated thermal overload protection, speed sensor output, and dry-run tolerance up to 20 minutes (flooded suction required).
- Description
- Ask a Question
-

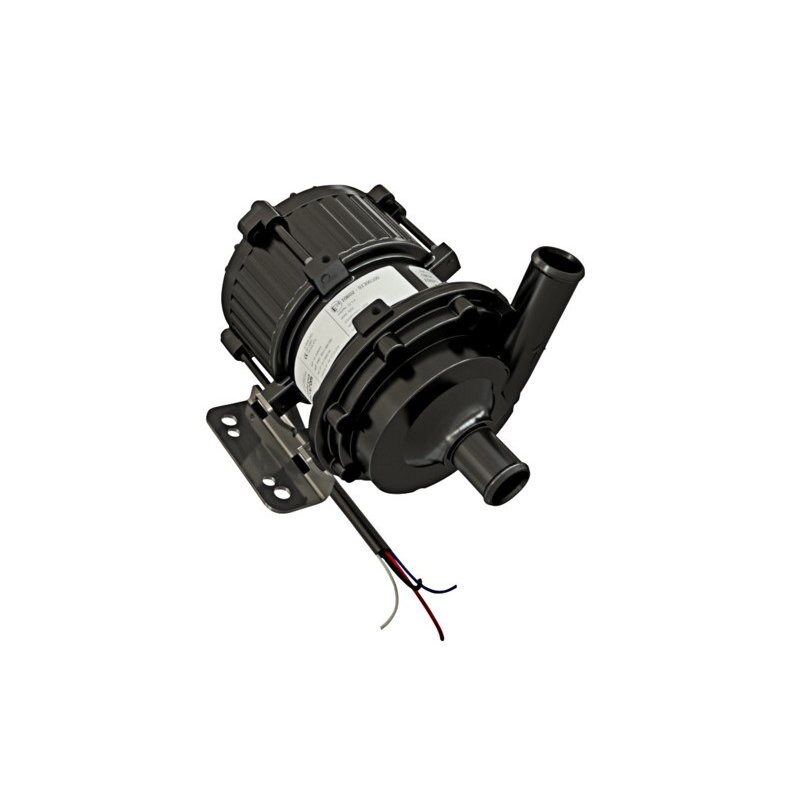

Johnson Pump 10-13607-10 CM95HP 24V Circulation Unit
The Johnson Pump 10-13607-10 is a heavy duty, high-pressure circulating pump designed to move fresh water or water/glycol mixtures in heating and cooling systems. Its magnetic-drive, seal-less construction provides a leak-proof solution for continuous-duty service, making it well-suited to demanding vehicle and marine installations.
Application
- Circulation of water/antifreeze in heating systems for trains, buses, boats, and similar equipment
- Circulation for cooling fresh water/coolants in vehicles
- High flow at high pressure for demanding applications such as cooling electrical circuits and batteries in hybrid and all-electric buses, trains, and other commercial vehicles
- Can be a direct replacement for many original equipment intercooler circulation pumps
Technical Specifications
Brand Johnson Pump Part Number 10-13607-10 Product Portfolio Circulation Pumps Voltage 24 V DC (Nominal Voltage 27.2 V) Motor Type Brushless 24 V DC Design Heavy Duty, Magnetic Driven, Seal-Less (Leak-Proof) Ingress Protection IP6K9K, IP67 (Water-Proof and Dust-Proof) Flow Rate Up to 78 L/min Flow / Pressure Points 78 L/min at 0.6 bar; 43 L/min at 1 bar Connection Ø38 mm (1-1/2 in) hose inner diameter; 1-1/2 in hose connection Amperage 10.8 A Recommended Fuse Size 20–25 A Liquid Fresh water or water/glycol mixture (max. 60% glycol) Liquid Temperature Range -40°C to +100°C Ambient Operating Temperature Range -40°C to +85°C System Pressure -0.2 to +2.5 bar at 100°C Priming Non-self-priming; requires flooded suction Dry-Run Tolerance Withstands dry running for up to 20 minutes Mounting Universal bracket for flat surfaces included; mounting type: foot mounting Dimensions (H × W × L) 16.2 cm × 13.5 cm × 21.4 cm Weight 3.2 kg Shipping Weight 4.20 kg
Product Details
- Thermal protection: Thermal overload protection through throttle function with automatic speed control in the event of overheating
- Monitoring: Speed sensor output signal
- Bearings and service rating: Permanently lubricated ball bearing brushless motor supports up to 40,000 hour uninterrupted service rating
Features
- High flow at high pressure for demanding circulation duties
- Leak-proof seal-less magnetic-drive design
- Water-proof and dust-proof protection (IP6K9K, IP67) for continuous operation
- Compatible with fresh water and water/glycol mixtures (up to 60% glycol)
Alternatives Listed
- Johnson Pump 10-13606-10
- Johnson Pump 10-13606-04
- Johnson Pump 10-13606-02
- Johnson Pump 10-13606-12 (with DEUTSCH connector)
Included Documentation (As Listed)
- Manual (DE)
- Manual (EN/SE)
- Flyer
-
