ID
1332434
$ 87.83
1-2 weeks delivery time
-
+

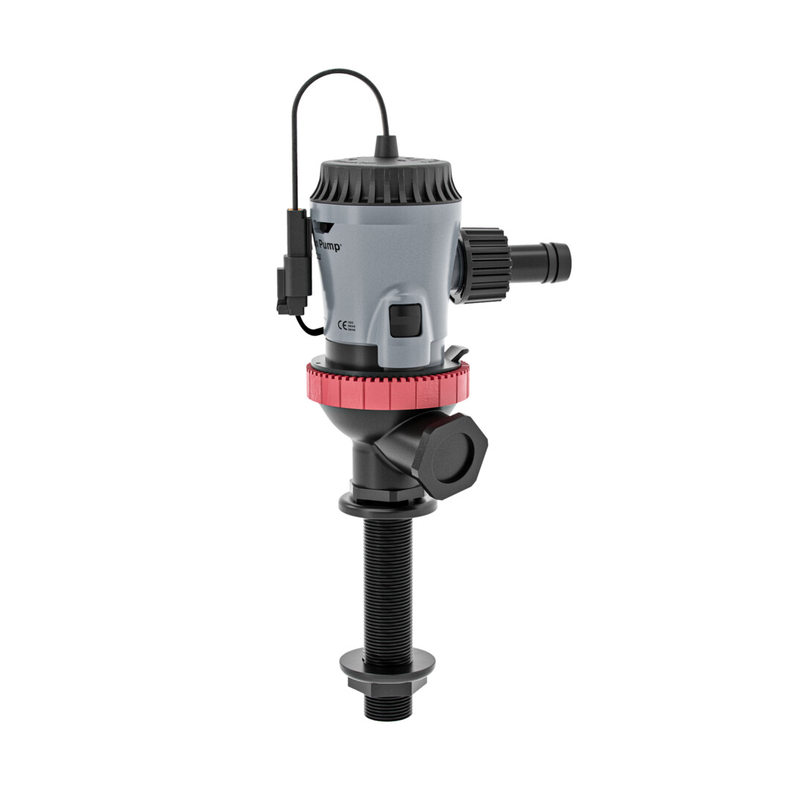

The Johnson Pump 10-13642-01 Aqua O2 cartridge aerator unit delivers 500 GPH flow for aeration and circulation needs using 12V operation at 2.7A. It supports a convenient single-intake setup for both a bait tank pump and a washdown pump, while the 360° rotatable outlet helps simplify hose routing. A high-performance impeller design increases efficiency and flow, and the robust thermoplastic housing with water-cooled construction uses a 316 stainless steel drive shaft and permanently lubricated double bearings for improved corrosion resistance and service life.
- Description
- Ask a Question
-
Johnson Pump 10-13642-01 Aqua O2 Cartridge Aeration System
The Aqua O2 cartridge aerator pump is built to provide strong, efficient water movement while making installation and service easier. Its cartridge-style design supports quick motor changes and capacity upgrades, and the intake options are designed around reducing the need for multiple hull inlets in dual-pump setups.
Application
- Cartridge aerator pump for bait tank and washdown pump intake convenience (single inlet concept)
- Dual-pump applications where a single transom intake is desired (dual inlet capability)
Technical Specifications
Brand Johnson Pump Part Number 10-13642-01 Pump Type Aqua O2 Cartridge Aerator Pump Flow Rate 500 GPH Rated Voltage 12 V Current Draw 2.7 A Fuse Size 3.5 A Hose Connection 3/4 in Thru-Hull Intake 3/4 NPSM (can be used straight or 90°) Seacock Intake 3/4 NPT (dual inlet version description)
Product Details
- Cartridge concept: Enables fast motor cartridge replacement or capacity upgrades.
- Outlet adjustability: 360° pump outlet rotation to re-align the discharge in any direction.
- Housing: Robust thermoplastic housing design supporting interchangeable motor cartridges.
- Water-cooled build: 316 stainless steel drive shaft with permanently lubricated double bearings for corrosion resistance and longer service life.
Features
- High-performance impeller design for increased efficiency and higher flow rate
- Quick-change motor connection for fast cartridge motor changes or capacity upgrades
- 360° outlet rotation for flexible hose routing
- Robust thermoplastic housing with shared construction for same-size or different-size cartridge swaps
- Water cooling with 316 stainless steel shaft and permanently lubricated double bearings
- Upgradeable motor cartridge to match required flow and operating conditions
- Dual inlet capability supporting a single transom intake for a dual-pump application
- Straight or 90° inlet option to suit the installation
-
