ID
1330917
$ 47.13
1-2 weeks delivery time
-
+
The Johnson Pump 10-13626-01 Aqua Void cartridge submersible bilge pump delivers compact, efficient bilge dewatering for marine use with 12V operation. It is rated at a 500 GPH pump size with up to 600 GPH (38 l/min) flow at 12V, draws 2.7A and uses a 3.5A fuse, and connects to a 3/4 in (19 mm) hose. Durable materials including an ABS body, PA66/GF nylon Dura-Port, 316 stainless steel shaft, and nitrile rubber shaft seal support long service life, while the water-cooled motor cartridge and integrated connector plug simplify maintenance. Includes straight and 90-degree discharge ports plus a non-return valve, with a compact 70 x 119 x 133 mm (2.75 x 4.69 x 5.24 in) footprint and 0.32 kg weight.
- Description
- Ask a Question
-

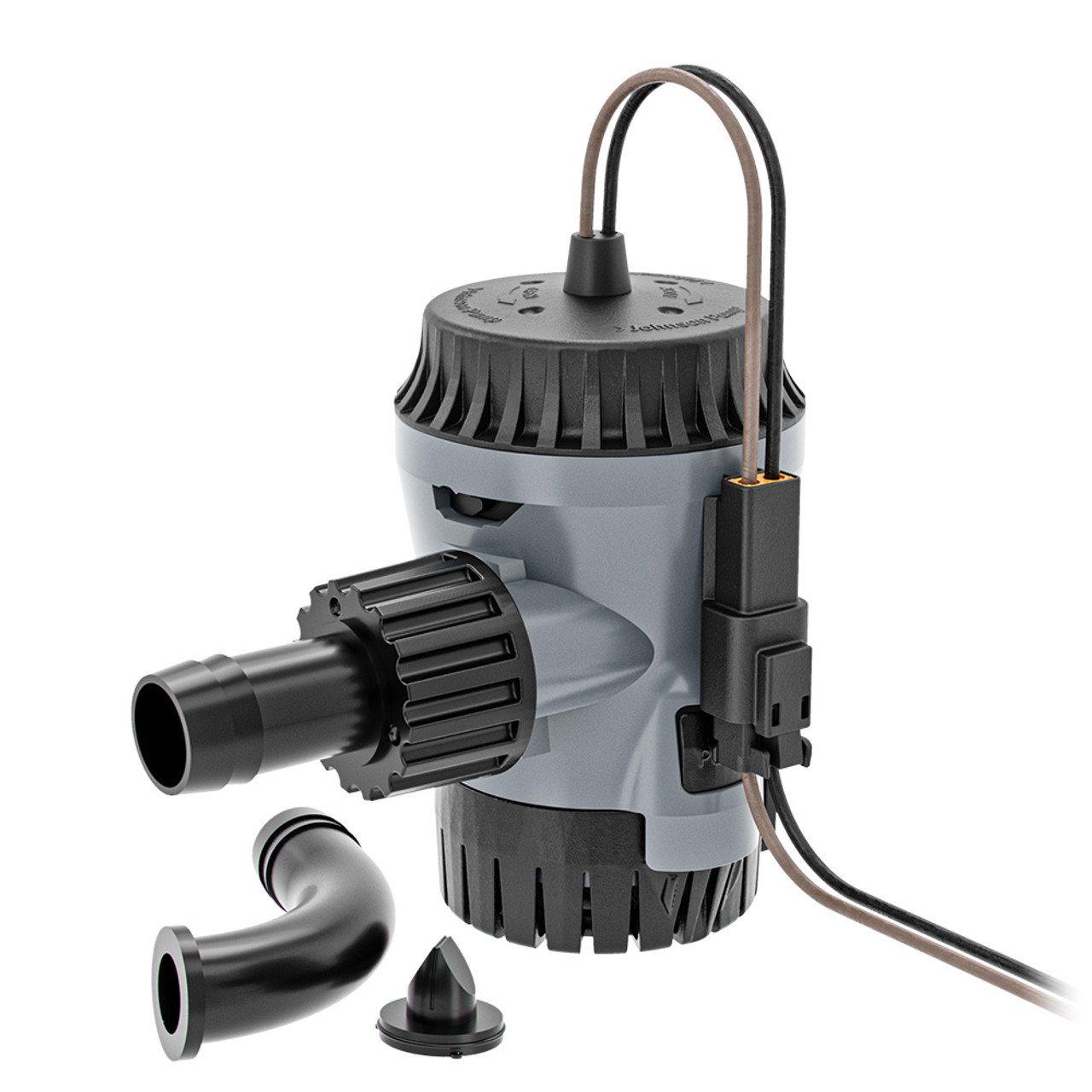

Aqua Void 500 GPH 12V Cartridge Bilge Pump by Johnson Pump 10-13626-01
The Johnson Pump Aqua Void is a compact submersible cartridge bilge pump built for marine applications where dependable bilge water removal and easy servicing matter. Its cartridge-style motor can be removed without tools, and the integrated connector plug and included harness connection are designed to simplify maintenance without wire cutting or splicing.
Application
- Submersible bilge pump for marine applications
- Manual operation via a separate switch panel
- Can be combined for automatic operation with optional switches
Compatibility
- Johnson Pump AS888 automatic switch
- Johnson Pump electronic float switch 34-1900B
- Johnson Pump Ultima Switch 34-36303
Technical Specifications
Brand Johnson Pump Part Number 10-13626-01 Article Number 66101362601 EAN 08719182239628 Product Portfolio Submersible bilge pumps Pump Size 500 GPH Capacity (12V, Straight / Without Back Pressure) 600 GPH (38 l/min) Flow at 1 m (3 ft) Head 26 l/min (410 GPH) Maximum Head 3.0 m Voltage 12V Current Draw 2.7A Fuse 3.5A Hose Connection 3/4 in (19 mm) Wire Size 16 GA, TAC Dimensions (W x H x L) 2.75 x 4.69 x 5.24 in (70 x 119 x 133 mm) Weight 11.2 oz (0.32 kg) Shipping Weight 0.50 kg
Product Details
- Construction: Corrosion-resistant design
- Motor: Highly efficient, water-cooled motor
- Bearings: Permanently lubricated dual bearings
- Body material: ABS
- Dura-Port material: PA66/GF nylon
- Shaft: 316 stainless steel
- Shaft seal: Nitrile rubber
- Motor cartridge material: PC-ABS
- Discharge ports: Straight and 90-degree Dura-Port connections
- Included in delivery: 1 non-return valve, 1 x 90-degree and 1 x straight Dura-Port connection piece (19 mm / 3/4 in)
- Alternative to: Johnson Pump Marine 32-1450-01 L450
- Alternative to: First Mate 32-1015-01
- Alternative to: 10-13626-02 (Bulk)
Features
- Cartridge motor can be removed without tools for maintenance or replacement
- Integrated connector plug and included harness connection to reduce installation work
- Reinforced snap-in basket designed to simplify installation and cleaning
- Improved impeller for higher efficiency and higher flow rate
- Integrated T-slot for easy installation of optional Johnson Pump switches
-
