ID
1332431
$ 83.15
1-2 weeks delivery time
-
+
The Johnson Pump Aqua Void Automatic submersible bilge pump 10-13626-03 delivers automatic bilge water removal using an auto-sensing cartridge motor that detects water by resistance, helping reduce the need for an external switch. It supports 12V operation and is supplied with 19 mm (3/4 in) straight and 90° Dura-Port hose connection pieces plus a non-return valve for flexible installation. The cartridge-style design, quick-change motor connection, and reinforced snap-in basket simplify cleaning and maintenance, while published performance includes up to 38 l/min (also listed as 50 l/min) and flow figures of 38 l/min (600 GPH) without back pressure and 26 l/min (410 GPH) at 1 m head.
- Description
- Ask a Question
-

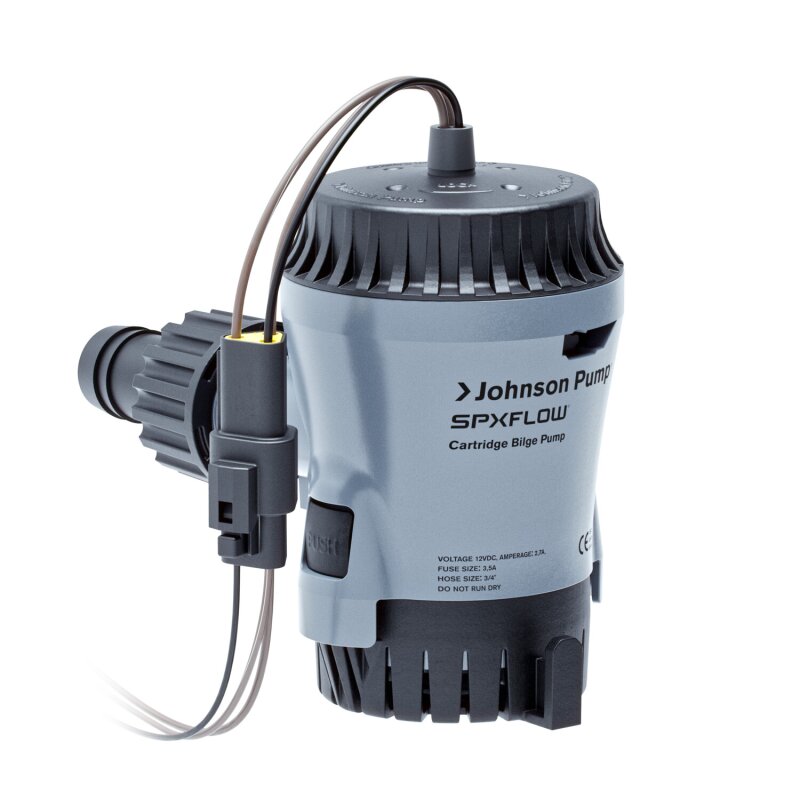

Johnson Pump 10-13626-03 Aqua Void Automatic Bilge Pump Unit
The Aqua Void Automatic from Johnson Pump is a submersible cartridge-style bilge pump designed for convenient, automatic bilge water management. Its auto-sensing motor cartridge monitors for water and switches to pumping operation when water is detected, while the service-friendly cartridge layout supports fast maintenance.
Application
- Submersible bilge pumping for automatic bilge water management
- Can be combined with an AS888 automatic switch, an electronic float switch, or an Ultima Switch for automatic operation
Technical Specifications
Brand Johnson Pump Part Number 10-13626-03 Product Portfolio Submersible bilge pumps Voltage 12 V Capacity 500 GPH (also stated: 800 GPH) Output 38 l/min (also stated: 50 l/min) Flow Rate at 12V Without Back Pressure 38 l/min (600 GPH) Flow Rate at 1 m Head 26 l/min (410 GPH) Maximum Head 4.4 m Current Consumption 3.7 A (also listed: 2.7 A) Fuse 3.5 A Hose Connection 19 mm (3/4 in), straight and 90° options Width 70 mm (2.75 in) Height 119 mm (4.69 in) Length 133 mm (5.24 in) Weight 12.6 oz (0.36 kg) Shipping Weight 0.50 kg
Product Details
- Pump type: Cartridge submersible bilge pump (Cartridge Series)
- Automatic sensing: Auto-sensing motor cartridge detects the presence of water based on resistance
- Automatic cycle: Impeller rotates for 1 second every 2.5 minutes to check for water; if water is detected, the pump runs until the bilge is dry
- Maintenance concept: Motor can be removed without tools for maintenance or replacement
- Service connection: Integrated connector plug for quick and easy maintenance
Features
- Industry-first quick-change motor connection for simplified installation and cartridge replacement
- Reinforced snap-in basket to make cleaning and installation more convenient
- Dura-Port hose connections designed to help prevent stress cracks caused by over-tightened hose clamps
- Improved efficiency with a new impeller for higher efficiency and higher flow rate
- Included in delivery: 1 x non-return valve, 1 x 90° Dura-Port connection piece, and 1 x straight Dura-Port connection piece (19 mm / 3/4 in)
-
