The Johnson Pump Aqua Void Automatic 10-13626-07 submersible bilge pump delivers improved performance with new technology for dependable bilge water removal on 12V systems. Its auto-sensing cartridge motor detects water based on resistance for automated operation, while the quick-change motor connection and reinforced snap-in basket simplify installation, cleaning, and maintenance. Supplied with 19 mm (3/4") straight and 90° hose connections plus a non-return valve, it provides up to 50 l/min (800 GPH class) with a maximum head of 4.4 m and a current draw of 3.7 A.
- Description
- Ask a Question
-

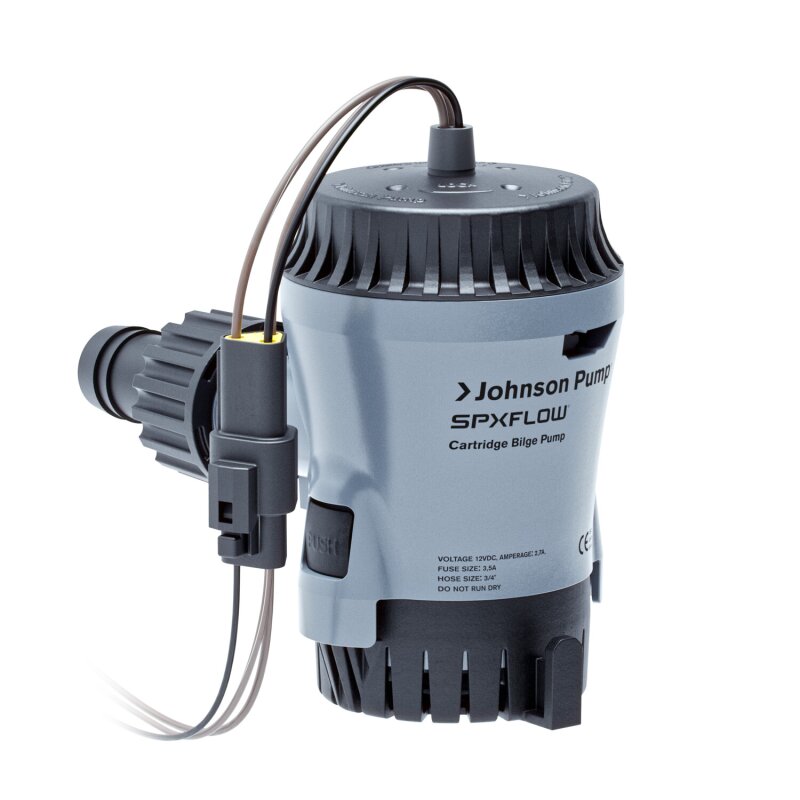

Johnson Pump 10-13626-07 Aqua Void Automatic Bilge Pump Unit
The Aqua Void Automatic is a cartridge-style submersible bilge pump from Johnson Pump, built to make bilge water management simpler and more reliable. It combines an auto-sensing motor cartridge with a service-friendly design, helping reduce downtime and making routine cleaning and maintenance quicker.
Application
- Submersible bilge pumping for boat bilge water removal
- Automatic operation via auto-sensing motor cartridge (water detection based on resistance)
Compatibility
- Can be combined with an AS888 automatic switch
- Can be combined with an electronic float switch
- Can be combined with an Ultima Switch
Technical Specifications
Brand Johnson Pump Part Number 10-13626-07 Product Portfolio Submersible bilge pumps Voltage 12V Flow Rate 50 l/min (795 GPH) at 12V without back pressure; 32 l/min (510 GPH) at 1 m (3 ft) head Output 38 l/min Current Consumption 3.7 A Fuse 5 A Maximum Head 4.4 m Hose Connection Straight and 90°; 19 mm (3/4") Dimensions Height 119 mm; Diameter 70 mm; Width With Connection 133 mm Weight 0.36 kg Shipping Weight 0.50 kg
Product Details
- Type: Cartridge submersible bilge pump (Cartridge Series)
- Motor service: Motor can be removed without tools for maintenance or replacement
- Connector: Integrated connector plug for quick and easy maintenance
- Operating logic: Impeller briefly rotates for 1 second every 2.5 minutes to detect water; if water is detected, the pump runs until the bilge is dry
Features
- New technology and improved performance
- Industry-first quick-change motor connection for easier servicing
- Reinforced snap-in basket to simplify cleaning and installation
- Improved motor for reliability and performance under all conditions
- Improved efficiency with a new impeller for higher efficiency and higher flow rate
- Easy-to-install Dura-Port hose connections designed to help prevent stress cracks caused by over-tightened hose clamps
Included in Delivery
- Non-return valve
- 90° Dura-Port connection piece, 19 mm (3/4")
- Straight Dura-Port connection piece, 19 mm (3/4")
-
