The Johnson Pump 10-13599-02 self-priming bronze impeller pump delivers seawater-resistant performance for a wide range of onboard duties, including engine cooling water pumping, bilge pumping, deck cleaning, fresh water pumping, refueling, and tank emptying. Built with a bronze pump housing, stainless steel shaft with permanently lubricated double ball bearings, and a mechanical seal, it combines durability with reliable operation. This flange-mounted F7 pump includes an MC97 impeller, uses 32 mm hose ports with a 1 1/2" BSP connection, and features a 24 mm drive shaft with a splined shaft end (9 splines) in a compact 217 x 160 x 65 mm envelope.
- Description
- Ask a Question
-

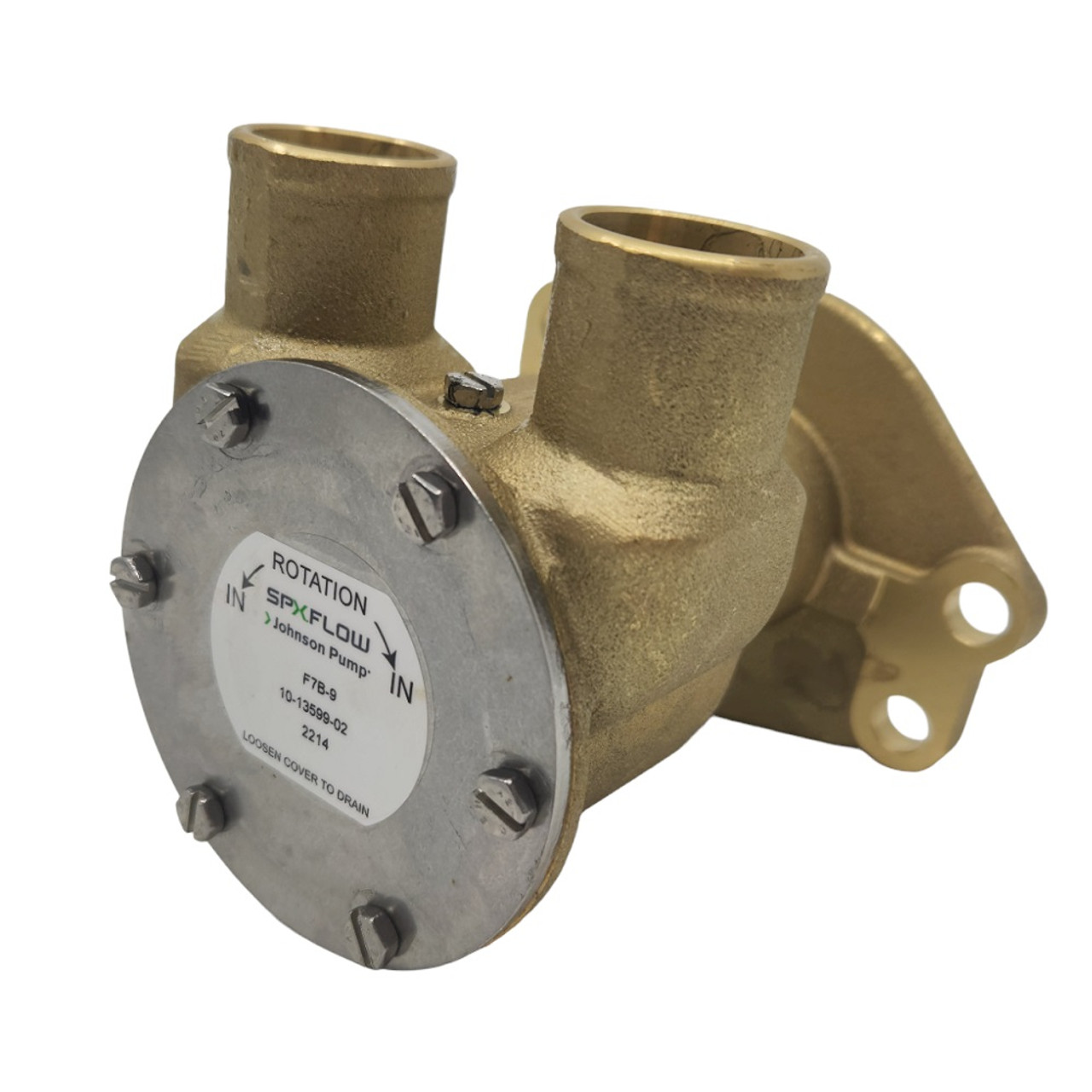

Johnson Pump 10-13599-02 Self-Priming Bronze Impeller Cooling Pump
The Johnson Pump 10-13599-02 is a general-purpose, self-priming bronze impeller pump developed for versatile marine use. Its compact, seawater-resistant design supports dependable onboard pumping across many common tasks while maintaining the quality associated with Johnson Pump Marine.
Application
- Cooling water pumping for ship engines
- Bilge pumping
- Deck cleaning
- Fresh water pumping
- Refueling
- Emptying holding tanks at the pier
- Flushing and refilling water tanks
Compatibility
- John Deere S350
- John Deere PowerTech 4.5L
- John Deere 4045DFM70
- John Deere TFM75
- John Deere PowerTech 6.8L
- John Deere 6068TFM75
- John Deere TFM76
- John Deere GBL6068TFM75 TFM Engines
- Kohler GM57562
- Kohler 5EOZ
- Kohler 55EFOZ
- Kohler 30E02
- Kohler 20EF02
- Kohler 40EOZ
- Kohler 33EFOZ
- Kohler 40E02
- Kohler 33EF02
- Kohler 65E02
- Kohler 55EF02
- Kohler 80EOZ
- Kohler 70EFOZ
- Kohler 99EOZ
- Kohler 80EFOZ
- Kohler 99E02
- Kohler 80LF02
- Onan 132-0435
Technical Specifications
Type Bronze impeller pump Size F7 Mounting Flange-mounted Cam Version 1/1 cam version Pump Housing Material Bronze Shaft Material Stainless steel Bearings Shaft with permanently lubricated double ball bearings Seal Type Mechanical seal Cam Full or partial cam Connections BSP or NPT Connection (Specified) 1 1/2" BSP Hose Ports 32 mm hose ports Hose Connection (Listed) 1-1/4" hose connection; 32 mm hose connection Drive / Shaft End Splined shaft end (9 splines) Drive Shaft Diameter 24 mm Impeller 09-819B-1 (09-819B-9) Includes MC97 impeller Dimensions (L x H x W) 217 mm x 160 mm x 65 mm Weight 5.9 kg (13 lbs) Shipping Weight (Listed) 3.50 kg
Product Details
- Self-priming: Self-priming under all circumstances
- Seawater resistance: Resistant to seawater
- Design focus: Compact design
- Series availability (range): Sizes from 3/8" up to 1 1/2" (4 l/min to 279 l/min)
- Impeller option: Pump with nitrile impeller available on request
- Article Number: 66101359902
Features
- High-quality bronze construction for marine environments
- Stainless steel shaft and mechanical seal for dependable service
- Flange mounting and splined drive interface for secure installation
OEM & Market Alternatives
- Johnson Pump 10-13599-01 (OEM)
- Johnson Pump 10-13599-02 (Open Market)
- Johnson Pump 10-24667-01
- Johnson Pump 10-24753-01
- Johnson Pump 10-24907-01
- Johnson Pump 10-24958-01
- John Deere DZ116559 (10-24958-01, 10-13599-01)
- John Deere DZ107518 (10-24907-01)
- John Deere RE525563 (10-24667-01)
- John Deere RE535944 (10-24753-01)
Related Service Items (Listed)
- Impeller Kit 09-1028BT-1
- Screw Kit 09-47553-105
-
