The Johnson Pump 10-13636-01 Aqua Void Ultima combo bilge pumping unit delivers automatic 12V dewatering with an included Ultima Switch water sensor and a rated capacity of 800 GPH (up to 50 L/min). A quick-change motor connection, reinforced snap-in basket, and integrated connector plug simplify installation and cleaning, while the cartridge-style design lets the motor be removed for service without tools. It includes a non-return valve plus 19 mm (3/4 in) straight and 90° hose connections, draws 3.7 A (5 A fuse), and provides up to 4.4 m maximum head for reliable bilge management under demanding conditions.
- Description
- Ask a Question
-

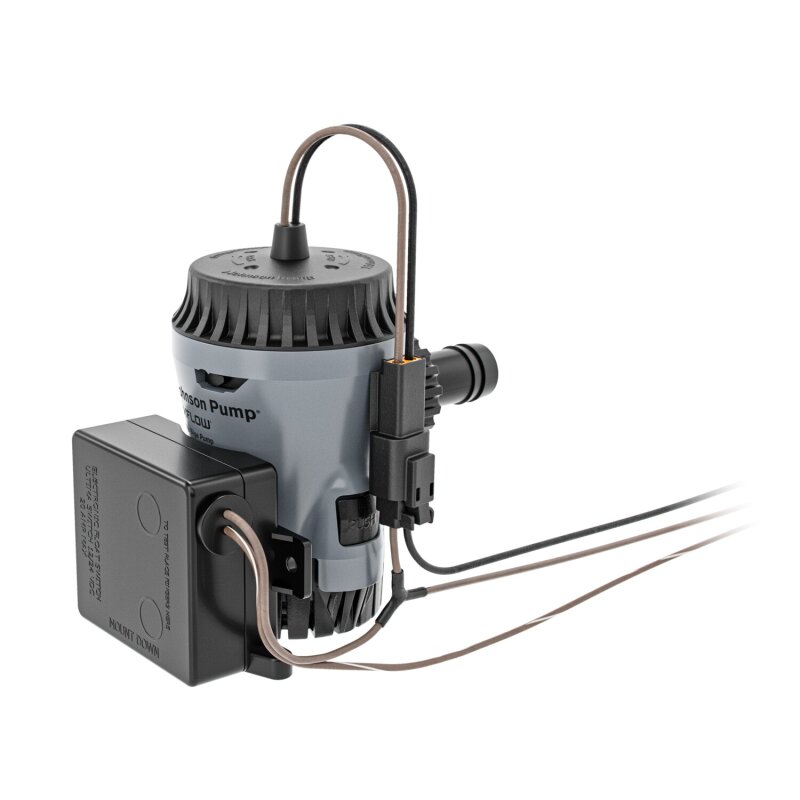

Johnson Pump 10-13636-01 Aqua Void Ultima Automatic Bilge Pump Set
The Aqua Void Ultima combo set pairs a submersible cartridge bilge pump with an electronic Ultima Switch water sensor to provide automatic bilge pumping on 12V systems. The design focuses on convenient maintenance and dependable performance, featuring a quick-change motor connection and a reinforced snap-in basket to make cleaning and installation easier.
Application
- Submersible bilge pumping for boats and marine bilge spaces
- Automatic operation via included Ultima Switch water sensor
- Can be combined with an AS888 automatic switch or an electronic float switch for automatic operation
Compatibility
- Alternative to Johnson Pump Marine 32-1550UC-01 L550
- Alternative to Johnson Pump 10-13636-02 (Bulk)
Technical Specifications
Brand Johnson Pump Part Number 10-13636-01 Product Portfolio Submersible bilge pumps Rated Voltage 12V Capacity 800 GPH Flow Rate 50 L/min Flow Rate at 12V (No Back Pressure) 50 L/min (795 GPH) Flow Rate at 1 m (3 ft) Head 32 L/min (510 GPH) Current Draw 3.7 A Recommended Fuse 5 A Maximum Head 4.4 m Hose Connection Size 19 mm (3/4 in) Width 70 mm (2.75 in) Height 119 mm (4.69 in) Length 133 mm (5.24 in) Width With Connection and Ultima Switch 151 mm Weight 0.36 kg (12.6 oz) Shipping Weight 0.70 kg Liquid Detection (On / Off) 50 mm / 20 mm (2 in / 3/4 in)
Product Details
- Pump type: Cartridge submersible bilge pump (Cartridge Series)
- Serviceability: Motor can be removed for maintenance or replacement without any tools
- Electrical connection: Integrated connector plug for quick and easy maintenance
- Included connections: 1 x 90° and 1 x straight hose connection piece, 19 mm (3/4 in)
- Included valve: 1 x non-return valve
- Ultima Switch sensor: Detects liquids using a Mirus field effect detector cell; no mercury and no moving parts; not affected by oil or foreign matter
Features
- Automatic control: Pre-configured with an electronic Ultima Switch for automatic operation
- Easy installation and maintenance: Quick-change motor connection and reinforced snap-in basket simplify cleaning and installation
- Improved efficiency: New impeller for higher efficiency and higher flow rate
- Durable hose interface: Dura-Port hose connections help prevent stress cracks caused by over-tightened hose clamps
-
