ID
1332429
$ 1,160.56
1-2 weeks delivery time
-
+

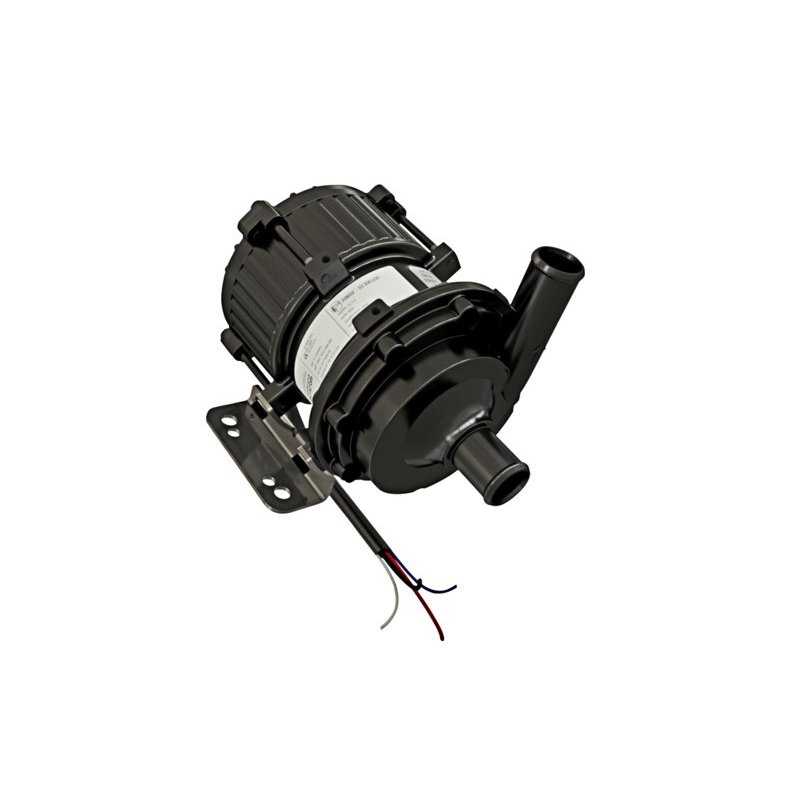

The Johnson Pump 10-13606-10 circulation pump unit (CM95HP AL-1BL) delivers heavy-duty, high-pressure circulation with a magnetic-driven, seal-less (leak-proof) design and a brushless 24V DC motor (nominal voltage 27.2V) for continuous operation. A 25 mm hose connection supports flow rates up to 75 litres per minute, with rugged water-proof and dust-proof protection (IP6K9K, IP67), thermal overload throttle protection, and a speed sensor output. Built for fresh water or water/glycol mixtures (max. 60% glycol), it covers wide liquid and ambient temperature ranges and includes a separate universal bracket for flat-surface installation.
- Description
- Ask a Question
-
Johnson Pump 10-13606-10 Heavy-Duty Magnetic-Drive Circulation Unit
The Johnson Pump 10-13606-10 (CM95HP AL-1BL) is a heavy-duty, high-pressure circulating pump designed for demanding heating and cooling circulation tasks. Its magnetic-driven, seal-less construction supports leak-proof operation, while the brushless 24V DC motor is built for continuous service in tough environments.
Application
- Circulation of water/antifreeze in heating systems for trains, buses, and boats
- Circulation for cooling fresh water/coolants in vehicles
- High-flow, high-pressure circulation for demanding applications such as cooling electrical circuits and batteries in hybrid and all-electric buses, trains, and other commercial vehicles
- Suitable for heating and cooling systems on boats, trains, buses, commercial vehicles, recreational vehicles, and motorhomes
- Can be a direct replacement for many original equipment intercooler circulation pumps
Technical Specifications
Brand Johnson Pump Part Number 10-13606-10 Product Portfolio Circulation Pumps Motor / Voltage Brushless 24V DC motor (nominal voltage 27.2V) Hose Connection 25 mm hose connection (1 inch hose connection); for Ø25 mm (1 inch) hose inner diameter Flow Rate Up to 75 litres per minute; 75 litres/minute at 0.6 bar; 37 litres/minute at 1 bar Ingress Protection IP6K9K, IP67 Current / Fuse Amperage 10.5 A; fuse size 20–25 A Liquid Type Fresh water or water/glycol mixture (max. 60% glycol) Liquid Temperature Range −40°C to +100°C Ambient Operating Temperature Range −40°C to +85°C System Pressure −0.2 to +2.5 bar at 100°C Mounting Foot mounting; separate universal bracket for flat surfaces included Dimensions (H × W × L) 16.2 cm × 13.5 cm × 20.8 cm Weight 3.2 kg Shipping Weight 4.20 kg
Product Details
- Pump type: High pressure circulating pump
- Drive concept: Magnetic driven, seal-less (leak-proof)
- Priming: Non-self-priming; requires flooded suction
- Dry-run tolerance: Withstands dry running for up to 20 minutes
- Protection: Thermal overload protection through throttle function with automatic speed control in the event of overheating
- Signal: Speed sensor output signal
- Motor bearing / service rating: Permanently lubricated ball bearing brushless motor allows up to 40,000 hour uninterrupted service rating
Features
- Heavy-duty construction for demanding circulation duties
- High flow at high pressure for challenging cooling applications
- Water-proof and dust-proof design (IP6K9K, IP67) for continuous operation
- 25 mm (1 inch) hose connection for straightforward integration
Alternatives Listed
- Johnson Pump 10-13606-04
- Johnson Pump 10-13606-02
- Johnson Pump 10-13606-12
Documentation Mentioned
- Manual (German)
- Manual (English/Swedish)
- Flyer
-
