ID
1330918
$ 67.25
1-2 weeks delivery time
-
+
The Johnson Pump Aqua Void 10-13626-05 bilge pumping unit delivers 12V DC dewatering performance up to 3000 LPH (795 US GPH) through a 19mm (3/4") hose outlet, with ISO 8849 Marine approval and a maximum recommended head of 4.4 m (14.5 ft). Built with an ABS pump body, nitrile rubber shaft seal, and 316 stainless steel shaft, it supports reliable bilge service while drawing 3.7A with a 5A fuse. Compact at 133 x 70 x 119 mm and only 0.36 kg, it is supplied with straight and 90° Dura-Port fittings plus a check valve for flexible installation (manual, non-automatic operation).
- Description
- Ask a Question
-

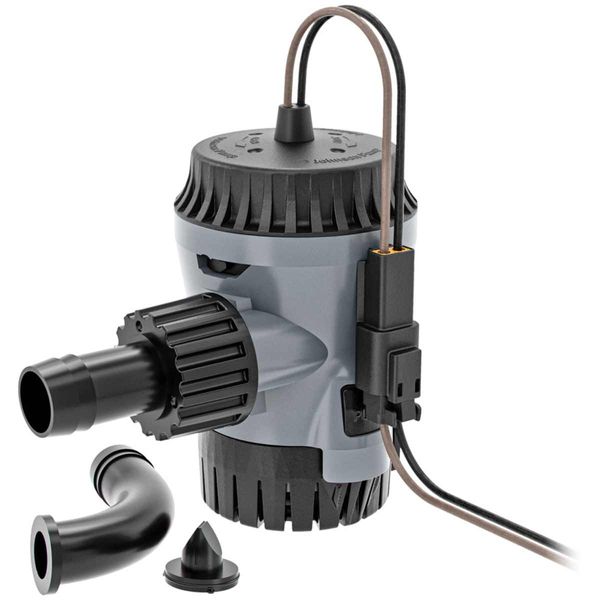

Johnson Pump Aqua Void 10-13626-05 Submersible Cartridge Bilge Pump
The Johnson Pump Aqua Void bilge pump is a compact, submersible cartridge-style solution for bilge water removal on marine vessels. It is designed to combine strong flow performance with corrosion-resistant materials and installation-friendly connections for dependable day-to-day pumping.
Application
- Bilge water pumping for marine applications
- Manual control (not an automatic bilge pump)
- Can be combined with optional switches for automatic operation
Compatibility (Optional Switches Mentioned)
- AS888 automatic switch
- 34-1900B electronic float switch
- Ultima Switch 34-36303
Technical Specifications
Brand Johnson Pump Part Number 10-13626-05 Series Aqua Void Approvals ISO 8849 Marine Voltage 12V DC Amperage 3.7A Fuse 5A Flow Rate (Description) 3000 LPH (795 US GPH) Flow Rate at 1 Metre Head 2100 LPH (560 US GPH) Flow Rate at 2 Metre Head 1560 LPH (405 US GPH) Capacity 50 l/min (795 GPH) Maximum Recommended Head 4.4 m (14.5 ft) Outlet / Hose Size 19mm (3/4") ID hose Dimensions 133 x 70 x 119mm Width 133mm (5.24") Height 119mm (4.69") Diameter 69.8mm (2-3/4") Weight 0.36kg (12.6 oz) Shipping Weight 0.50 kg EAN 08719182239567 Article Number 66101362605
Product Details
- Product portfolio: Submersible bilge pumps
- Construction materials: ABS pump body, nitrile rubber shaft seal, 316 stainless steel shaft
- Supplied with: Straight Dura-Port, 90° Smooth Elbow Dura-Port, and check valve
- Connection pieces included: 1 x non-return valve, 1 x 90° Dura-Port fitting, 1 x straight Dura-Port fitting (19mm / 3/4")
Features
- Cartridge-style design: Motor can be removed without tools for maintenance or replacement
- Quick-change connection: Included harness connection for tool-free and splice-free installation
- Water-cooled motor: Supports efficient operation in bilge pumping duty
- Corrosion-resistant shaft: 316 stainless steel shaft for marine environments
- Dura-Port fittings: Designed to help prevent stress cracks caused by over-tightened hose clamps
-
