Zipwake S Series Geared Motor is a fast, submersible servo unit designed for direct installation inside S Series interceptors. It is calibration-free, reliable, supplied with a 3 m cable, and rated IP68 for demanding marine use. Brand Zipwake, Article 2011230.
- Description
- Ask a Question
-

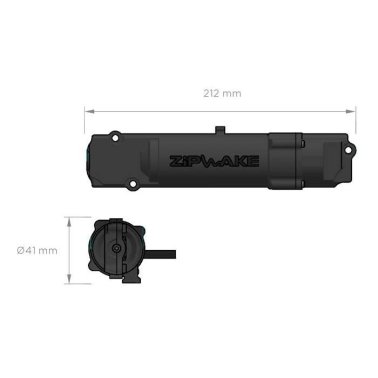

Zipwake 2011230 - 12V / 32V S Series Geared Motor With 3m Cable
The Zipwake S Series Geared Motor is a fast-acting and durable servo unit designed specifically for S Series interceptors. This submersible electrical servo unit is installed inside the interceptor, where it precisely drives the linear motion of the interceptor blades.
The unit is calibration-free, highly reliable, and simple to install or replace. It is supplied with a robust 3 m cable and a self-sealing through-hull fitting, ensuring secure and watertight installation in demanding marine environments.
Technical Data
Model SU-S Servo Motor Type Brushless DC with Hall sensors Supply Voltage 12 – 32 V DC Power Consumption 25 W max Operating Temperature 0° to +40°C (+32° to +104°F) Storage Temperature -40° to +90°C (-40° to +194°F) Waterproof Rating IP68 5 m (16 ft) Compliance CE, FCC Cable Length 3 m (10 ft), extendable up to 6 m (20 ft) Cable Material PUR Connector M12 5-pin circular Connector Diameter 14.5 mm (0.57 in) Weight 0.75 kg (1.7 lbs) including cable
Brand Zipwake, Article 2011230
-
