ID
1342008
$ 4,360.28
1-2 weeks delivery time
-
+
Zipwake Trim Control System KB600-S provides precise automatic trim and roll stabilization with fast response and smooth handling up to 60 knots. The integrator setup allows clean helm installation and system expansion to six S Series interceptors. Brand Zipwake, Article 2011147.
- Description
- Ask a Question
-
Zipwake 2011147 - Trim Control System KB600-S
The Zipwake S Series Dynamic Control System is an advanced trim and stabilization solution designed to enhance comfort, safety, and performance while sailing. This intelligent system provides precise and intuitive control of trim, heel, and roll, allowing the vessel to remain balanced in all conditions.
Using an integrated gyrometric sensor and GPS, the system automatically adjusts trim parameters to reduce drag and optimize efficiency at speeds of up to 60 knots. Roll is actively minimized, the boat stays flat underway, and turns remain smooth and balanced.

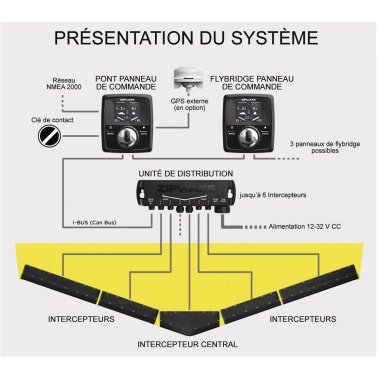

The integrator version enables full control through a central black box, allowing operation via onboard multifunction displays, smartphones, or tablets. This creates a clean and uncluttered dashboard while still supporting up to three additional control panels if required.
Each kit supports expansion with up to two additional pairs of S Series interceptors, allowing a total of six interceptors to be managed by one controller.
Kit Contents

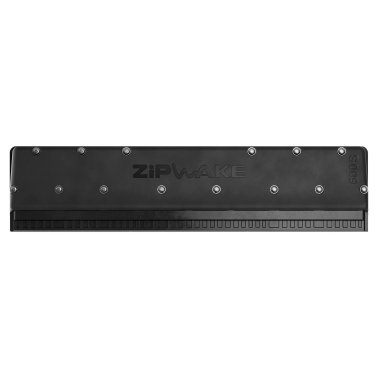

- Pair of S Series interceptors
- Integrator controller or enclosure
- Distribution box

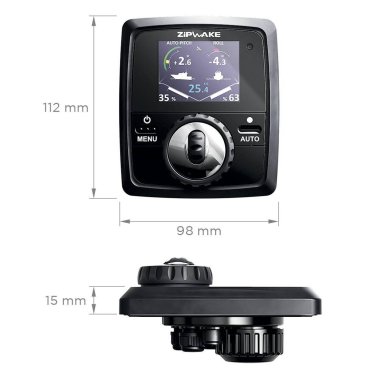

- Control unit with 7 m cable
- Distribution box with 4 m power cable
- Interceptors with 3 m cable, through-hull fittings, and sheaths
Technical Data (Per Interceptor)
Dimensions 600 mm Height 115 mm Width 600 mm Stroke 30 mm Consumption 25 Maximum Speed 60 knots Boat Length 10–50 m Weight 10.6 kg Model Control Panel Packaging Packaging
Brand Zipwake, Article 2011147
-
