ID
1342017
$ 529.34
1-2 weeks delivery time
-
+
Zipwake External GPS Antenna delivers fast and accurate position and speed data with a 5 Hz update rate, ensuring reliable input for Zipwake automatic motion control systems. It is fully waterproof, easy to mount, and ideal when internal GPS reception is limited. Brand Zipwake, Article 2011240.
- Description
- Ask a Question
-

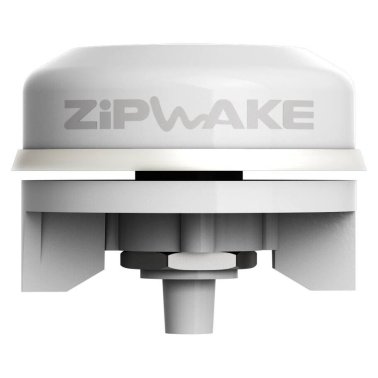

Zipwake 2011240 - External GPS Antenna With 5m Cable And Mounting Bracket
The Zipwake External GPS Antenna is a high-performance solution designed to deliver fast and accurate vessel position and speed data. With a 5 Hz update rate and 20-channel receiver, it ensures reliable speed input for the Zipwake automatic motion control system. Its robust, fully waterproof construction makes it suitable for demanding marine environments.
This external GPS antenna is an optional accessory, ideal for vessels where internal GPS signals are weak or unavailable, such as boats with a single helm station and a shielding roof. The antenna can be mounted on a pole or directly on a surface and connects easily to any Zipwake control panel via the EXT GPS connector.
Key Features
- Fast and accurate 5 Hz position and speed updates
- 20-channel receiver for excellent signal reception
- Fully waterproof and rugged marine-grade construction

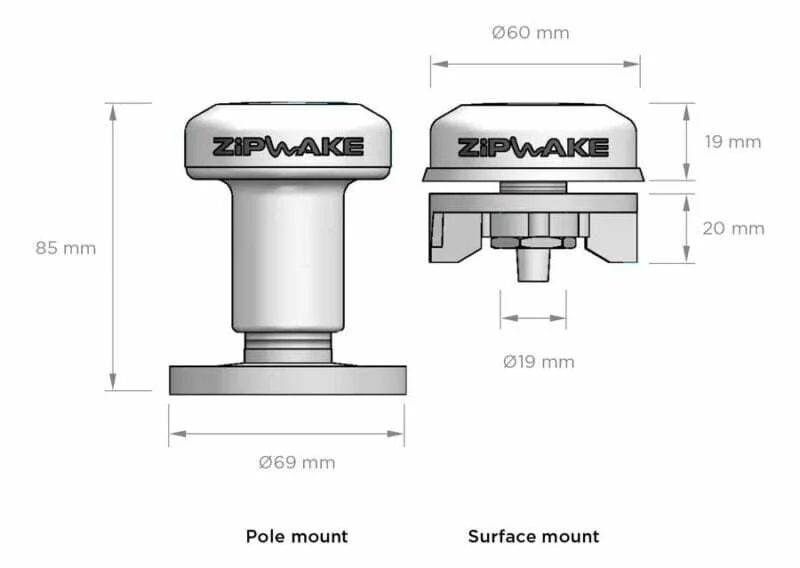

- Flush or pole mounting options
- Compatible with all Zipwake control panels
Technical Data
Model GPS Connectors M12 5-pin circular Cable Material White PVC Cable Length 5 m (16 ft), extendable to max 15 m (49 ft) Supply Voltage 5 V DC ±5% Power Consumption 0.28 W, 55 mA (average) Protocol NMEA 0183 / RS232 NMEA Sentences RMC, VTG, GGA, GSA, GSV, GLL Baud Rate 38400 Update Rate 5 Hz Number Of Channels 20 Time To First Fix Hot 6 s, Warm 38 s, Cold 42 s Operating Temperature -30° to +85°C (-22° to +185°F) Storage Temperature -40° to +95°C (-40° to +203°F) Waterproof Rating IP67 Compliance CE, FCC Weight 0.065 kg (0.14 lbs) without cable and connector Mounting Flush or pole
Brand: Zipwake | Article: 2011240
-
