Zipwake IT450-S Interceptor provides reliable and fast trim control for boats from 6 m to 15 m. With a robust, water-cooled servo actuator and simple installation options, it delivers high performance with minimal maintenance. Brand Zipwake, Article 2011233.
- Description
- Ask a Question
-
Zipwake 2011233 - IT450-S Interceptor With 3 m Cable
The Zipwake IT450-S Interceptor is engineered for planing and semi-planing boats ranging from 6 m to 15 m (20–50 ft). As part of the Series S family, it features a modular design optimized for mass production, delivering a balance of strength, reliability, and cost efficiency.
All components are carefully designed to resist impact and prevent water ingress. The integrated submersible electric servo actuator operates without calibration and benefits from natural water cooling. Powered by 12–32 V DC, the brushless motor delivers a rapid 1.5-second blade stroke, offering performance far superior to traditional trim tabs.
Installation flexibility is ensured through an integral mounting plate and a self-sealing thru-hull cable fitting that can be concealed or mounted above the waterline. Each interceptor includes the necessary cable fitting, cable covers, and a drill template for precise installation.
Key Features
- Optimized for boats between 6 m and 15 m (20–50 ft)
- High-speed blade actuation for improved trim control
- Calibration-free submersible servo actuator
- Durable construction with excellent waterproof protection
- Simple and adaptable installation options
Technical Data

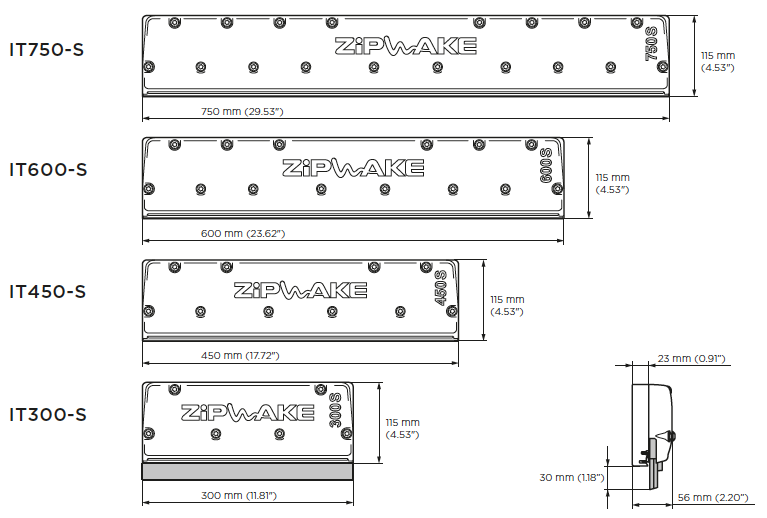

Model IT450-S Length 450 mm (18 in) Weight 2.8 kg (6.2 lbs) Max. Boat Speed 60 knots Blade Stroke 30 mm (1.2 in) Blade Rate 20 mm/s (0.8 in/s) Servo Actuator SU-S Cable Length 3 m (10 ft), extendable up to 6 m (20 ft) Cable Material PUR Connector M12 5-pin circular Connector Diameter 14.5 mm (0.57 in) Supply Voltage 12 – 32 V DC Power Consumption 25 W max Operating Temperature 0° to +40°C (+32° to +104°F) Storage Temperature -40° to +90°C (-40° to +194°F) Waterproof Rating IP68, 5 m (16 ft) Compliance CE, FCC Thru-Hull Cable Fitting Concealed or above waterline -
