Zipwake IT600-S Interceptor is a durable and cost-effective trim solution for boats from 6 m to 15 m, featuring a fast 1.5-second stroke and calibration-free servo. Flexible installation and strong waterproof protection ensure long-term reliability. Brand Zipwake, Article 2011234.
- Description
- Ask a Question
-
Zipwake 2011234 - IT600-S Interceptor With 3m Cable
The Zipwake IT600-S Interceptor is a durable and cost-effective trim control solution designed for planing and semi-planing boats between 6 m and 15 m (20–50 ft). As part of the Series S modular interceptor family, it offers reliable performance, fast response, and easy installation for a wide range of boat designs.
This interceptor features a robust construction engineered to withstand impact and prevent water ingress, significantly reducing maintenance needs and downtime. A calibration-free, submersible electric servo actuator is integrated directly into the unit. Natural water cooling ensures optimal operating conditions for the brushless DC servo motor, which operates on 12–32 V DC.
With a blade stroke time of just 1.5 seconds, the IT600-S delivers trim response up to five times faster than conventional trim tabs. Installation is simplified through an integral mounting plate and a self-sealing thru-hull cable fitting that can be concealed or mounted above the waterline. All required accessories, including cable covers and a drill template, are included.
Key Features
- Designed for boats from 6 m to 15 m (20–50 ft)
- Fast blade deployment with 1.5-second stroke
- Calibration-free submersible servo actuator
- Natural water-cooled brushless DC motor
- Flexible installation with concealed or above-waterline cable routing
Technical Data

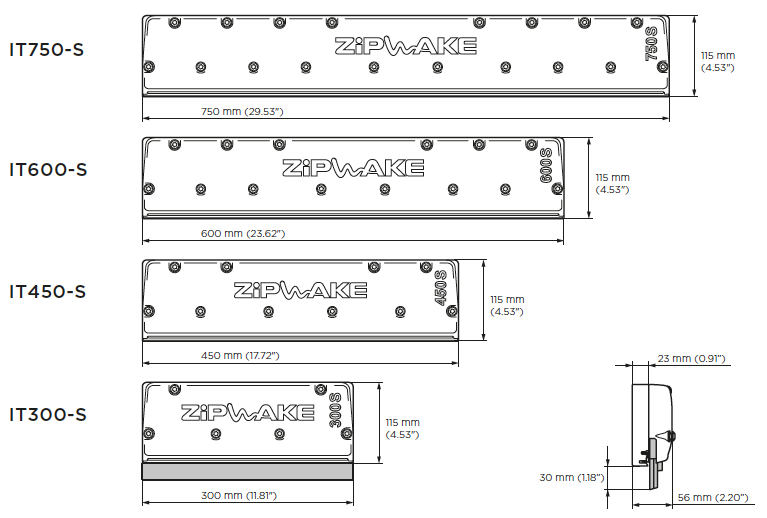

Model IT600-S Length 600 mm (24 in) Weight 3.5 kg (7.7 lbs) Maximum Boat Speed 60 knots Blade Stroke 30 mm (1.2 in) Blade Rate 20 mm/s (0.8 in/s) Servo Actuator SU-S Cable Length 3 m (10 ft), extendable up to 6 m (20 ft) Cable Material PUR Connector M12 5-pin circular Connector Diameter 14.5 mm (0.57 in) Supply Voltage 12 – 32 V DC Power Consumption 25 W max Operating Temperature 0° to +40°C (+32° to +104°F) Storage Temperature -40° to +90°C (-40° to +194°F) Waterproof Rating IP68 up to 5 m (16 ft) Compliance CE, FCC Thru-Hull Cable Fitting Concealed or above waterline
Brand Zipwake, Article 2011234
-
