Zipwake IT750-S Interceptor delivers high-performance trim control for boats from 6 m to 15 m with rapid blade response and robust construction. It features an integrated servo actuator, natural water cooling, and flexible cable routing options. Brand Zipwake, Article 2011235.
- Description
- Ask a Question
-
Zipwake 2011235 - IT750-S Interceptor With 3 M Cable

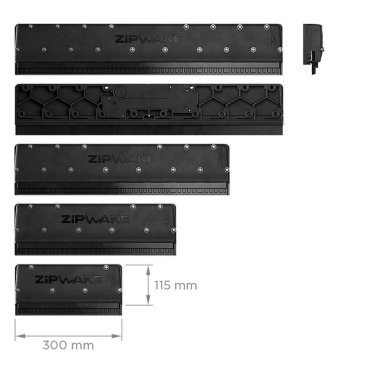

The Zipwake IT750-S Interceptor is a high-performance trim control solution developed for planing and semi-planing boats ranging from 6 m to 15 m (20–50 ft). As part of the Series S interceptor family, it combines modular design with reliable engineering to deliver fast, precise trim adjustments.
Built for durability, all components are designed to resist impact and prevent water ingress, helping to minimize maintenance and operational downtime. The interceptor uses a calibration-free, submersible electric servo actuator integrated into the unit. Natural water cooling ensures efficient operation of the brushless DC motor across a 12–32 V DC supply range.
The IT750-S achieves a full blade stroke in just 1.5 seconds, offering significantly faster response than traditional trim tabs. Installation is straightforward thanks to the integral mounting plate and a self-sealing thru-hull cable fitting that supports concealed or above-waterline routing. Each unit is supplied with cable covers and a drill template for accurate installation.
Key Features
- Optimized for boats from 6 m to 15 m (20–50 ft)
- Rapid trim response with 1.5-second blade stroke
- Integrated, calibration-free servo actuator
- Natural water cooling for long service life
- Flexible and easy installation options
Technical Data

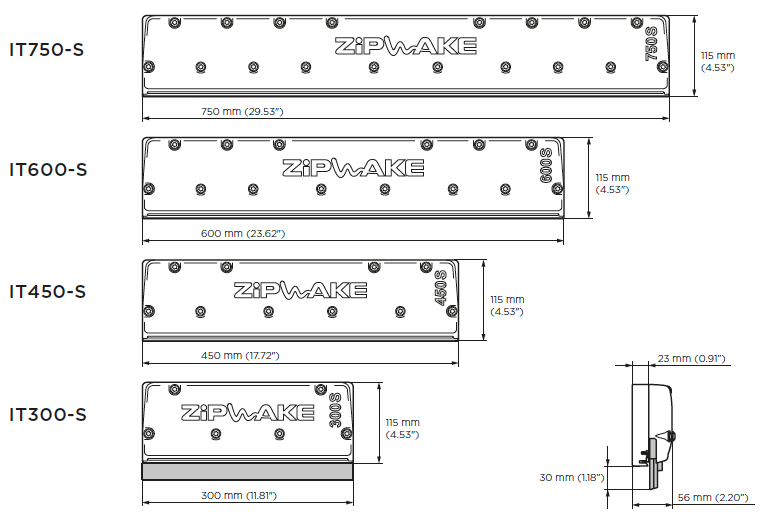

Model IT750-S Length 750 mm (30 in) Weight 4.0 kg (8.8 lbs) Maximum Boat Speed 60 knots Blade Stroke 30 mm (1.2 in) Blade Rate 20 mm/s (0.8 in/s) Servo Actuator SU-S Cable Length 3 m (10 ft), extendable up to 6 m (20 ft) Cable Material PUR Connector M12 5-pin circular Connector Diameter 14.5 mm (0.57 in) Supply Voltage 12 – 32 V DC Power Consumption 25 W max Operating Temperature 0° to +40°C (+32° to +104°F) Storage Temperature -40° to +90°C (-40° to +194°F) Waterproof Rating IP68 up to 5 m (16 ft) Compliance CE, FCC Thru-Hull Cable Fitting Concealed or above waterline
Brand Zipwake, Article 2011235
-
