Zipwake IT300-S Interceptor is designed for planing and semi-planing boats from 6 m to 15 m, offering fast trim response with a 1.5-second blade stroke. It features an integrated calibration-free servo, flexible cable routing, and high waterproof protection. Brand Zipwake, Article 2011232.
- Description
- Ask a Question
-

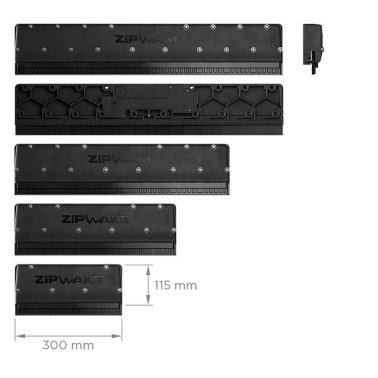

Zipwake 2011232 - IT300-S Interceptor With 3 m Cable
The Zipwake IT300-S Interceptor is designed for planing and semi-planing boats between 6 m and 15 m (20–50 ft). Built as part of the Series S modular interceptor family, this model combines durability, affordability, and high performance. Its robust construction withstands impact while preventing water ingress, reducing maintenance needs and downtime.
A calibration-free, submersible electric servo actuator is integrated directly into the interceptor unit. Natural water cooling ensures optimal operating conditions for the brushless DC motor, which runs on a wide 12–32 V DC range. With a blade stroke completed in just 1.5 seconds, the IT300-S significantly outperforms conventional trim tabs.
Installation is straightforward thanks to the integral mounting plate and flexible cable routing. The interceptor supports both concealed and above-waterline self-sealing thru-hull cable fitting options. Each unit is supplied with a thru-hull cable fitting, cable covers, and a practical drill template.
Key Features
- Suitable for boats from 6 m to 15 m (20–50 ft)
- Fast blade actuation with 1.5-second stroke time
- Submersible, calibration-free servo actuator
- Flexible installation with concealed or above-waterline cable routing
- High waterproof rating for marine environments
Technical Data

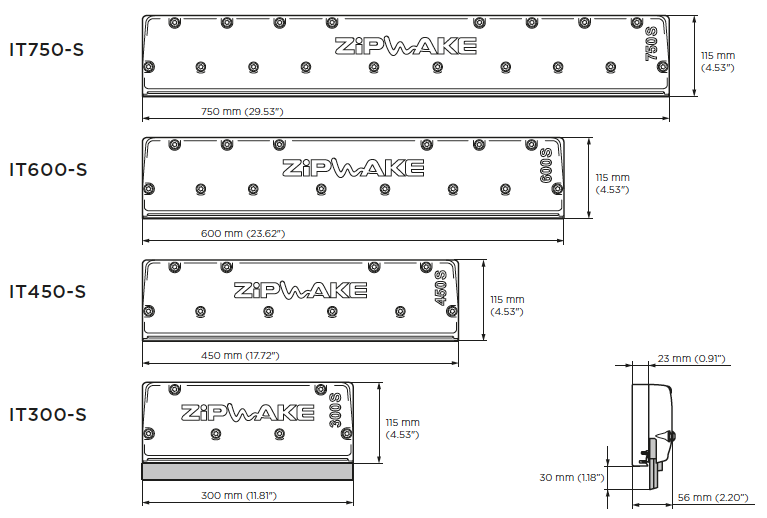

Model IT300-S Length 300 mm (12 in) Weight 2.1 kg (4.6 lbs) Max. Boat Speed 60 knots Blade Stroke 30 mm (1.2 in) Blade Rate 20 mm/s (0.8 in/s) Servo Actuator SU-S Cable Length 3 m (10 ft), extendable up to 6 m (20 ft) Cable Material PUR Connector M12 5-pin circular Connector Diameter 14.5 mm (0.57 in) Supply Voltage 12 – 32 V DC Power Consumption 25 W max Operating Temperature 0° to +40°C (+32° to +104°F) Storage Temperature -40° to +90°C (-40° to +194°F) Waterproof Rating IP68, 5 m (16 ft) Compliance CE, FCC Thru-Hull Cable Fitting Concealed or above waterline -
