Zipwake DU-S Distribution Unit is the central power and connection hub for Series S systems, supporting up to six interceptors. It features waterproof, ignition-protected housing, integrated electrical protection, and a 4 m power cable for reliable installation. Brand Zipwake, Article 2011239.
- Description
- Ask a Question
-

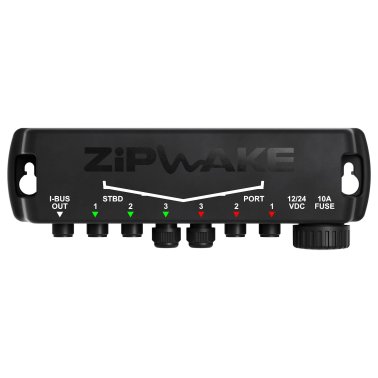

Zipwake 2011239 - DU-S Distribution Unit - 4m Cable
The Zipwake DU-S Distribution Unit is the central power and connection hub for the Zipwake Series S system. It supplies power to the system and supports up to six Series S interceptors, ensuring reliable and efficient operation.
The unit connects directly to the main control panel or an integrator module and is built for installation in demanding engine room environments. Its robust housing is waterproof, oil resistant, and ignition protected. For safe and simple installation, a power cable is included, along with built-in electrical protection and an integrated fuse.
Key Features
- Supplies power to the Zipwake Series S system
- Supports up to six Series S interceptors
- Waterproof, oil resistant, and ignition protected design
- Integrated electrical protection with built-in fuse
- Power cable included for direct battery connection

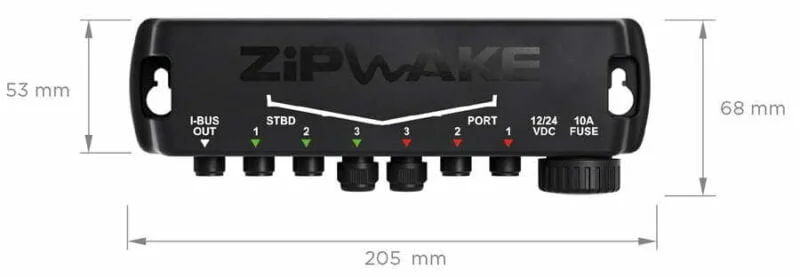

Connectors
- Six interceptor connections
- I-BUS OUT (power and CAN bus to control panels)
- 2-lead power cable
Technical Specifications
Model DU-S Supply Voltage 12 – 32 V DC Power Consumption 0.1 W max Protection Fuse 10 A ATO Power Cable Length 4 m (13 ft), diameter 9 mm (0.35 in), 12 AWG Operating Temperature -20° to +85°C (-4° to +185°F) Storage Temperature -40° to +90°C (-40° to +194°F) Waterproof Rating IP67 with cables and/or protective caps mounted Oil Resistance Common engine fluids Compliance CE, FCC, SAEJ1171 ignition protected Weight 1.0 kg (2.2 lbs) including the power cable
Brand Zipwake, Article 2011239
-
