ID
1342015
$ 1,352.26
1-2 weeks delivery time
-
+
Zipwake CPS S Series Control Panel provides intuitive manual and automatic control of trim and stabilization through dual control wheels and an AUTO mode. A sunlight-readable 2.4-inch display and advanced sensors ensure precise feedback and smooth operation. Brand Zipwake, Article 2011238.
- Description
- Ask a Question
-
Zipwake 2011238 - CPS S Series Control Panel - 7.5m Cable

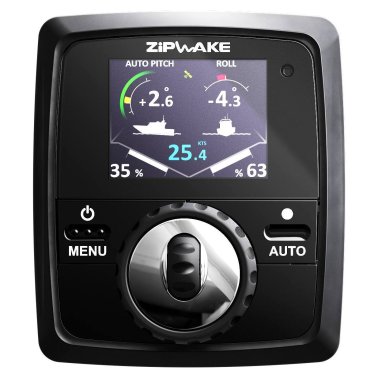

The Zipwake CPS S Series Control Panel is designed to give the skipper fast, intuitive, and precise control over boat trim and stability. Two unique control wheels allow manual adjustment of running trim, heel, or heading, while the system primarily operates in automatic mode for maximum comfort and safety.
With a single press of the AUTO button, the control panel activates advanced automatic control. Using a built-in high-frequency GPS, 3D gyro sensors, and a robust motion controller, the system dynamically reduces uncomfortable and potentially dangerous pitch and roll. This ensures a smoother, safer, and more enjoyable boating experience.
A bright 2.4-inch sunlight-readable color display provides continuous real-time feedback, including boat speed, pitch and roll angles, and interceptor positions. The panel is engineered for reliable operation in demanding marine environments and supports a wide range of interfaces for seamless system integration.
Key Features
- Intuitive dual control wheels for manual trim and stabilization control
- Automatic mode with one-touch AUTO button activation
- High-frequency GPS and advanced motion sensors
- Sunlight-readable 2.4-inch color display
- Flush or surface mounting options
Interfaces
- I-BUS IN (CAN bus)
- I-BUS OUT (CAN bus)
- NMEA 2000
- External GPS (NMEA 0183 / RS232 auto baud-rate sensing)
- Key Sense
- USB Device Port (Type A)
- USB Host Port (Type B)
Technical Specifications

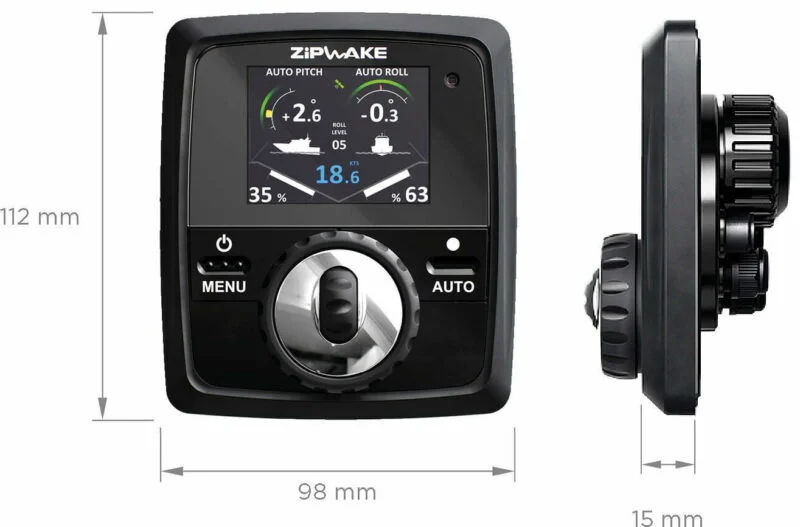

Model CP-S Display 2.4’’ transflective color TFT, 320 x 240 pixels, double-sided, anti-reflection coated window Internal Sensors 5 Hz GPS, 3D gyro, 3D accelerometer, ambient light Supply Voltage 12 – 32 V DC Power Consumption 10 W max Operating Temperature -20° to +85°C (-4° to +185°F) Storage Temperature -40° to +90°C (-40° to +194°F) Waterproof Rating IP67 / IP64 (front / back) Compass Safe Distance 0.5 m (1.7 ft) Compliance CE, FCC Weight 0.22 kg (0.49 lbs) Mounting Flush or surface
Brand Zipwake, Article 2011238
-
