Linak LA14 IC Advanced is a 24V DC linear actuator with a 130 mm stroke, 750 N load capacity and IP69K protection. It features a robust coated aluminium housing, metal mounting eyes and integrated programmable motor control. The actuator operates at 1.3A, provides locking functionality and is intended for non-parallel operation.
- Description
- Ask a Question
-

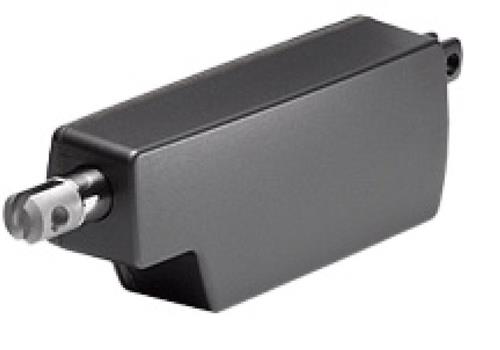

Linak LA14 IC Advanced Linear Actuator 24V 130mm 750N IP69K
The Linak LA14 IC Advanced is a new-generation linear actuator featuring a robust coated aluminium housing and metal mounting eyes. Designed for demanding applications, it combines a 130 mm stroke and 750 N load capacity with IP69K environmental protection.
This IC Advanced version incorporates complete programmable motor control directly into the actuator. The unit operates from a 24V DC supply with a current rating of 1.3A and includes a locking function.
Key Features
- LA14 IC Advanced linear actuator
- Integrated programmable motor control
- Voltage: 24V DC
- Current: 1.3A
- Stroke length: 130 mm
- Load capacity: 750 N
- Protection class: IP69K

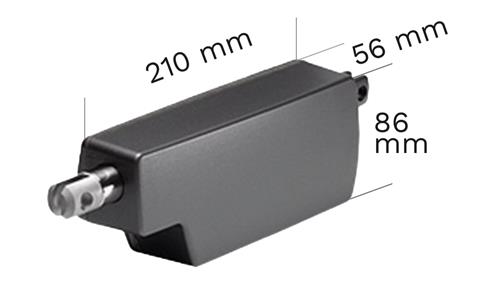

- Center-to-center distance: 245 mm
- Coated aluminium housing
- Metal mounting eyes
- Locking: Yes
- Parallel operation: No
Technical Data
Product Number 036128 Series LA14 IC Advanced Voltage 24V DC Current 1.3A Stroke Length 130 mm Load Capacity 750 N Center-to-Center Distance 245 mm Speed at Full Load 9 Protection Class IP69K Locking Yes Parallel Capable No EAN 8720193014944
Installation
A mounting bracket is available separately and can be installed on either side of the actuator.
-
