ID
1385991
$ 499.31
1-2 weeks delivery time
Voltage:
- 12V
- 24V
Linak LA14 is a robust linear actuator with a 100 mm stroke, 750 N load capacity and IP69K protection for demanding applications. Available in 12V DC / 2.5A and 24V DC / 1.3A versions, both with a 245 mm center-to-center distance. The LA14 features a coated aluminium housing, metal mounting eyes and an internal limit switch, and is not designed for parallel operation.
- Description
- Ask a Question
-

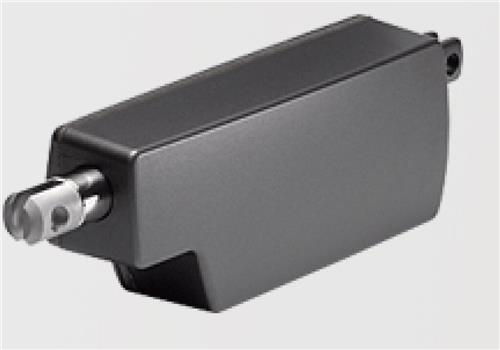

Linak LA14 IP69K Linear Actuator 100 mm Stroke 750N – 12V / 24V
The Linak LA14 is a robust linear actuator featuring a coated aluminium housing, metal mounting eyes and an internal limit switch. With IP69K protection, a 100 mm stroke and a load capacity of 750 N, the actuator is designed for applications requiring a durable and well-protected linear drive.
The LA14 is available in 12V DC and 24V DC versions. Both variants have a 245 mm center-to-center distance and are intended for non-parallel operation. A separate mounting bracket is available and can be used on either side of the actuator.
Key Features
- Linak LA14 linear actuator
- Stroke length: 100 mm
- Load capacity: 750 N
- Protection class: IP69K
- Center-to-center distance: 245 mm
- Coated aluminium housing
- Metal mounting eyes
- Internal limit switch
- 12V DC and 24V DC versions available
- Parallel operation: No
Available Versions
Product Number Voltage Current Stroke Load Center-to-Center Protection 036125 12V DC 2.5A 100 mm 750 N 245 mm IP69K 036126 24V DC 1.3A 100 mm 750 N 245 mm IP69K
Additional Information
- 12V version speed under load: 8
- 24V version speed under load: 9
- Mounting bracket available separately and suitable for installation on either side
- Motor Control A is recommended for actuator control
-
