Linak LA36 IC is a heavy-duty linear actuator series with integrated motor control, 6.8 kN / 680 kg maximum load, IP69K protection and 250 mm or 500 mm stroke options. Available in 12V DC / 21A and 24V DC / 10.3A versions, with IC Advanced for single-actuator installations and IC Parallel for synchronized parallel applications. Center-to-center dimensions are 450 mm with 250 mm stroke and 750 mm with 500 mm stroke.
- Description
- Ask a Question
-

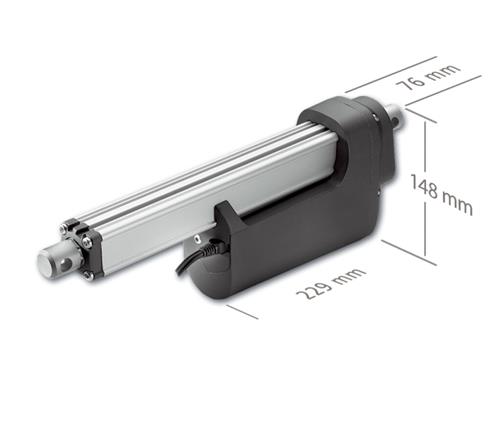

Linak LA36 IC Advanced & IC Parallel Linear Actuator 6.8kN 12/24V DC 250–500mm Stroke IP69K

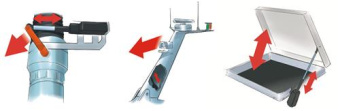

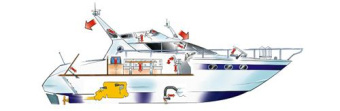

The Linak LA36 IC is a heavy-duty linear actuator with integrated motor control, designed for applications requiring high force, robust construction and reliable linear movement. The actuator features a painted aluminium housing and is suitable for applications such as opening hatches, mast adjustment and folding radar brackets.
The LA36 IC series provides a maximum load capacity of 6.8 kN / 680 kg and IP69K protection. Versions are available for 12V DC or 24V DC operation and with either 250 mm or 500 mm stroke lengths.
IC Advanced and IC Parallel Versions
- IC Advanced: Integrated motor control for single-actuator applications.
- IC Parallel: Designed for parallel actuator applications with integrated control.
- No separate external motor controller is required for IC Advanced and IC Parallel versions.
- A signal cable is required when actuators are used in parallel.
Technical Features
- Series: LA36
- Maximum load: 6.8 kN / 680 kg
- Voltage options: 12V DC or 24V DC
- Current: 21A at 12V DC / 10.3A at 24V DC
- Stroke options: 250 mm or 500 mm
- Center-to-center distance: 450 mm or 750 mm
- Speed under load: 12 mm/s
- Protection class: IP69K
- Locking: Yes
- IC Advanced and IC Parallel configurations available
- Mounting bracket available separately and suitable for installation on either side
Available Versions
Product Number Version Voltage Current Stroke Center-to-Center Parallel 036149 IC Advanced 12V DC 21A 250 mm 450 mm No 036150 IC Advanced 24V DC 10.3A 250 mm 450 mm No 036151 IC Advanced 12V DC 21A 500 mm 750 mm No 036152 IC Advanced 24V DC 10.3A 500 mm 750 mm No 036153 IC Parallel 12V DC 21A 250 mm 450 mm Yes 036154 IC Parallel 24V DC 10.3A 250 mm 450 mm Yes 036155 IC Parallel 12V DC 21A 500 mm 750 mm Yes 036156 IC Parallel 24V DC 10.3A 500 mm 750 mm Yes -
