ID
1386012
$ 1,331.28
1-2 weeks delivery time
Voltage:
- 12V
- 24V
Length, mm:
- 250
- 500
Linak LA36 heavy-duty linear actuator available in 12V and 24V DC versions with 250 or 500 mm stroke lengths, maximum load of 680 kg and IP69K protection. The 12V versions operate at 21A and the 24V versions at 10.3A, with a full-load speed of 12 mm/s. All variants feature a locking function, while the 250 mm stroke versions support parallel operation.
- Description
- Ask a Question
-
Linak LA36 Linear Actuator 12V / 24V DC 250–500mm Stroke IP69K

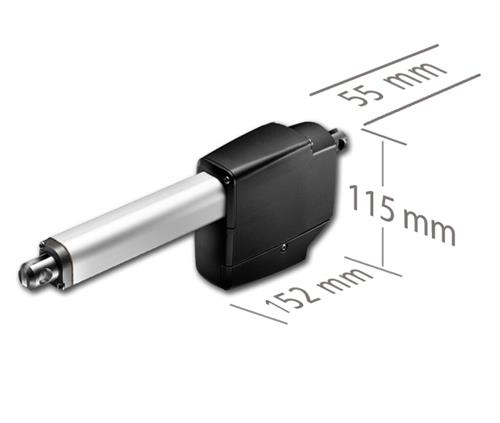

The Linak LA36 is a heavy-duty linear actuator with a robust painted aluminium housing, designed for applications requiring high load capacity and controlled linear movement. The series is available in 12V and 24V DC versions with 250 mm and 500 mm stroke lengths.
All available versions provide a maximum load capacity of 680 kg, IP69K protection, a locking function and a full-load speed of 12 mm/s. The 12V models operate at 21A, while the 24V models operate at 10.3A. The 250 mm stroke versions have a 450 mm center-to-center distance and support parallel operation, while the 500 mm stroke versions have a 750 mm center-to-center distance and are intended for single-actuator operation.
Key Features
- Series: Linak LA36
- Voltage options: 12V DC and 24V DC
- Current: 21A at 12V or 10.3A at 24V
- Maximum load: 680 kg
- Protection class: IP69K
- Stroke options: 250 mm or 500 mm
- Center-to-center distance: 450 mm or 750 mm depending on version
- Full-load speed: 12 mm/s
- Locking: Yes
- 250 mm stroke versions suitable for parallel operation
- 500 mm stroke versions intended for single-actuator operation
- Mounting bracket available separately and suitable for installation on either side
Available Versions
Product Number Voltage Current Stroke Center-to-Center Max. Load Parallel 036143 12V DC 21A 250 mm 450 mm 680 kg Yes 036144 24V DC 10.3A 250 mm 450 mm 680 kg Yes 036147 12V DC 21A 500 mm 750 mm 680 kg No 036148 24V DC 10.3A 500 mm 750 mm 680 kg No
Product Codes
- 036143 – LA36 12V DC, 21A, 250 mm stroke, 450 mm center-to-center, parallel – EAN 8720193014951
- 036144 – LA36 24V DC, 10.3A, 250 mm stroke, 450 mm center-to-center, parallel – EAN 8720193014968
- 036147 – LA36 12V DC, 21A, 500 mm stroke, 750 mm center-to-center, single application – EAN 8720193014975
- 036148 – LA36 24V DC, 10.3A, 500 mm stroke, 750 mm center-to-center, single application – EAN 8720193014982
When multiple actuators are used in parallel, a signal cable is required.
-
