ID
1385988
$ 327.31
1-2 weeks delivery time
Voltage:
- 12V
- 24V
Linak LA12 is a compact maintenance-free linear actuator designed for marine applications, with IP66 protection, 130 mm stroke length and 245 mm center-to-center distance. Available in 12V DC / 4.6A and 24V DC / 2.2A versions, both with locking and for single, non-parallel operation. Suitable for applications such as operating valves, hatches and small folding LCD screens.
- Description
- Ask a Question
-

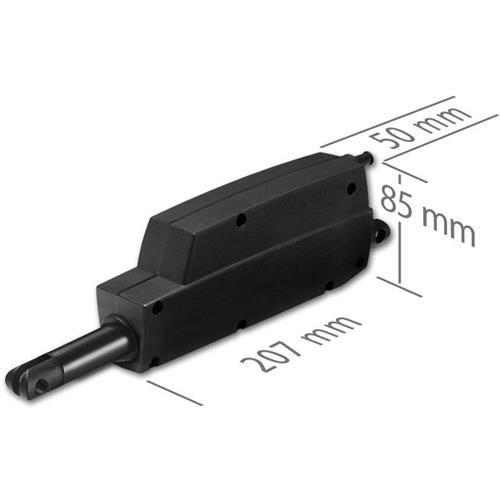

Linak LA12 IP66 Linear Actuator 130 mm Stroke – 12V / 24V
The Linak LA12 is a compact linear actuator designed for applications requiring reliable linear movement in marine environments. Its maintenance-free design, long service life and IP66 protection make it suitable for installations exposed to demanding conditions.

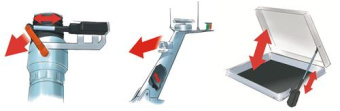

Typical applications include operating valves and hatches as well as raising or folding small LCD screens. The actuator is intended for single operation and is not suitable for parallel synchronized operation. Both available versions feature a locking function.
Key Features
- Linak LA12 linear actuator
- Maintenance-free design

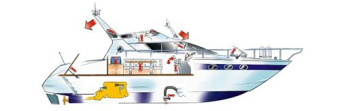

- Suitable for marine applications
- Protection class: IP66
- Stroke length: 130 mm
- Center-to-center distance: 245 mm
- DC operation
- Suitable for single applications
- Locking: Yes
- Parallel operation: No
Available Versions
Product Number Voltage Current Stroke Protection Locking Parallel Capable 036001 12V DC 4.6A 130 mm IP66 Yes No 036002 24V DC 2.2A 130 mm IP66 Yes No
Additional Information
- Mounting bracket is available separately and can be used on either side
- Motor Control A, article 036201, is recommended for actuator control
-
