Linak LA25 Linear Actuator 12V / 24V DC 250mm Stroke IP69K

ID 1385996

$ 986.61

1-2 weeks delivery time

Voltage:

Item:

410 mm C-C
380 mm C-C

Linak LA25 compact linear actuator available in 12V DC and 24V DC versions with a 250 mm stroke and IP69K protection class. Depending on the version, the actuator has a 380 or 410 mm center-to-center distance and a maximum load of 150 or 250 kg. Current consumption is 3.8A at 12V and 1.9A at 24V.

Description
Ask a Question

Linak LA25 Linear Actuator 12V / 24V DC 250mm Stroke IP69K

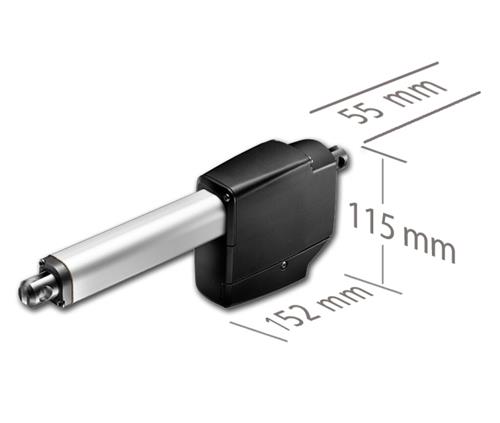

The Linak LA25 is a compact linear actuator with a robust painted aluminium housing, metal mounting eyes and internal limit switches. The available versions operate at 12V DC or 24V DC and feature a 250 mm stroke with IP69K protection.

Depending on the selected version, the LA25 has a center-to-center mounting distance of 380 or 410 mm and a maximum load capacity of 150 or 250 kg. The 12V versions operate at 3.8A, while the 24V version operates at 1.9A.

Key Features

LA25 series linear actuator
12V DC and 24V DC versions available
Stroke length: 250 mm
Center-to-center distance: 380 or 410 mm depending on version
Maximum load: 150 or 250 kg depending on version
Protection class: IP69K
Painted aluminium housing
Metal mounting eyes
Internal limit switches
Mounting bracket available separately

Available Versions

Product Number	Voltage	Current	Stroke	Center-to-Center	Max. Load	Speed Under Load	IP Rating
036601	12V DC	3.8A	250 mm	380 mm	150 kg	5.2	IP69K
036610	12V DC	3.8A	250 mm	410 mm	250 kg	2.6	IP69K
036611	24V DC	1.9A	250 mm	410 mm	250 kg	2.6	IP69K

Product Codes

036601 – Linak LA25, 12V DC, 3.8A, 380 mm CTC, 250 mm stroke, 150 kg max. load – EAN 8720193015323
036610 – Linak LA25, 12V DC, 3.8A, 410 mm CTC, 250 mm stroke, 250 kg max. load – EAN 8720193015460
036611 – Linak LA25, 24V DC, 1.9A, 410 mm CTC, 250 mm stroke, 250 kg max. load – EAN 8720193015347

Motor Control A, article 036201, is recommended for actuator control.
