ID
1385995
$ 721.61
1-2 weeks delivery time
-
+
Linak LA23 is a maintenance-free 12V DC linear actuator with a maximum force of 1.2 kN and IP6X protection, designed for applications in marine environments. The actuator operates at 10.3A and is suitable for applications such as operating valves and folding small LCD screens. A mounting bracket is available separately and can be installed on either side.
- Description
- Ask a Question
-

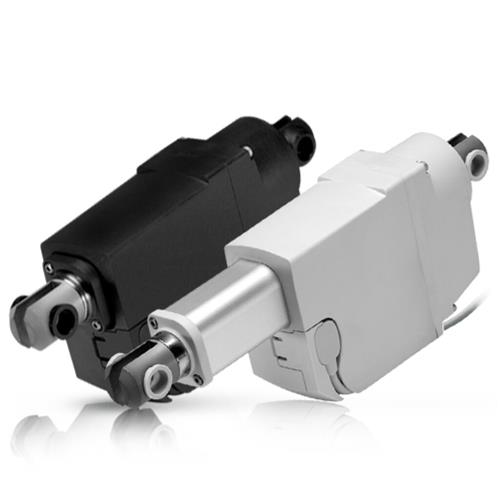

Linak LA23 Linear Actuator 1.2kN 12V DC IP6X

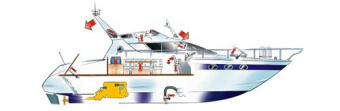

The Linak LA23 is a maintenance-free linear actuator designed for applications requiring reliable linear movement. Its long service life and IP6X protection make it suitable for use in marine environments.

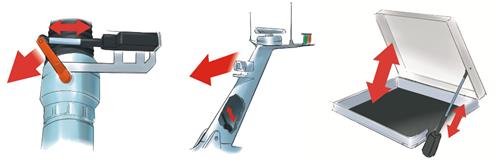

The actuator provides a force capacity of 1.2 kN and operates from a 12V DC power supply with a current rating of 10.3A. Typical applications include operating valves and raising or folding small LCD screens.
Key Features
- Linak LA23 linear actuator
- Force capacity: 1.2 kN
- Voltage: 12V DC
- Current: 10.3A
- Protection class: IP6X
- Maintenance-free design
- Designed for long service life
- Suitable for marine applications
Technical Data

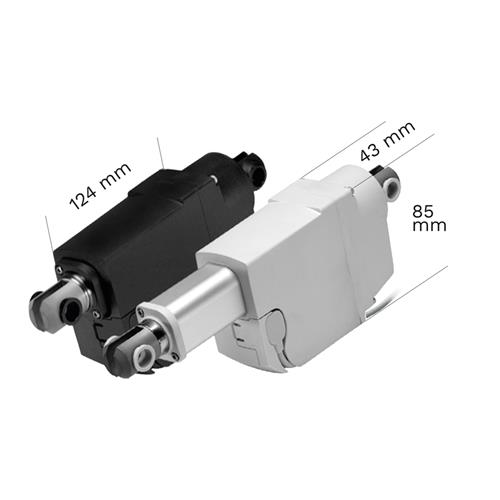

Product Number 036616 Brand Linak Series LA23 Force 1.2 kN Voltage 12V DC Current 10.3A Protection Class IP6X EAN 8720193099873
Installation and Control
- Mounting bracket is available separately and can be used on either side
- Motor Control A, article 036201, is recommended for actuator control
-
