Linak LA25 IC is a 1.5 kN linear actuator with a 250 mm stroke, 380 mm center-to-center distance and IP69K protection, available in 12V DC and 24V DC versions. IC Advanced models feature integrated motor control, while IC Parallel versions are designed for parallel operation. Depending on voltage, current consumption is 3.8A at 12V or 1.9A at 24V, with full-load speeds of 5.2 and 5.5 mm/s respectively.
- Description
- Ask a Question
-

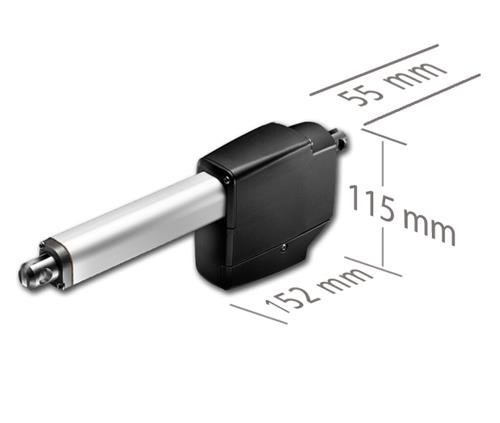

Linak LA25 IC Advanced & IC Parallel Linear Actuator 1.5kN 250mm 12V / 24V DC IP69K
The Linak LA25 IC is a new-generation linear actuator with a robust painted aluminium housing and IP69K protection. The series is available in IC Advanced and IC Parallel configurations, with both 12V DC and 24V DC power options.
The IC Advanced and IC Parallel versions feature integrated motor control, eliminating the need for a separate motor controller. The actuator can be connected directly to the power supply and switch. IC Parallel versions additionally support parallel actuator operation.
Key Features
- Series: Linak LA25
- Maximum force: 1.5 kN / 150 kg
- Stroke length: 250 mm
- Center-to-center distance: 380 mm
- Protection class: IP69K
- Voltage options: 12V DC or 24V DC
- IC Advanced and IC Parallel configurations
- Integrated motor control
- Painted aluminium housing
- Mounting bracket available separately and suitable for installation on either side
Available Versions
Product Number Version Voltage Current Full-Load Speed Parallel Operation 036612 IC Advanced 12V DC 3.8A 5.2 mm/s No 036613 IC Advanced 24V DC 1.9A 5.5 mm/s No 036614 IC Parallel 12V DC 3.8A 5.2 mm/s Yes 036615 IC Parallel 24V DC 1.9A 5.5 mm/s Yes
Product Codes
- 036612 – LA25 1.5kN, 250 mm, 12V DC, IC Advanced – EAN 8720193015354
- 036613 – LA25 1.5kN, 250 mm, 24V DC, IC Advanced – EAN 8720193099842
- 036614 – LA25 1.5kN, 250 mm, 12V DC, IC Parallel – EAN 8720193099859
- 036615 – LA25 1.5kN, 250 mm, 24V DC, IC Parallel – EAN 8720193099866
-
