Linak LA30 Linear Actuator 12V / 24V DC 250–400mm Stroke IP66

ID 1386005

$ 952.29

1-2 weeks delivery time

Type:

Parallel
Locked
Parallel, Twisted Eye
456 mm C-C

Voltage:

Linak LA30 linear actuator series available in 12V and 24V DC versions with 250, 300 or 400 mm stroke lengths and IP66 protection. Available configurations include 250 mm stroke locked versions with a maximum load of 300 kg, 300 mm stroke versions with a 456 mm center-to-center distance, and 400 mm stroke models for parallel operation. Current consumption varies by configuration from 3.5A to 14A.

Description
Ask a Question

Linak LA30 Linear Actuator 12V / 24V DC 250–400mm Stroke IP66

The Linak LA30 is a linear actuator series available in 12V and 24V DC configurations with stroke lengths of 250, 300 and 400 mm. All available versions feature IP66 protection and are designed for controlled linear movement.

The 250 mm stroke versions have a 406 mm center-to-center distance, a maximum load capacity of 300 kg and are available as locked non-parallel models. The 300 mm stroke versions have a 456 mm center-to-center distance. For parallel applications, 24V versions with a 400 mm stroke and 556 mm center-to-center distance are available, including a version with a twisted mounting eye.

Key Features

Series: Linak LA30
Voltage options: 12V DC and 24V DC
Stroke lengths: 250, 300 or 400 mm
Center-to-center distance: 406, 456 or 556 mm depending on version
Protection class: IP66
Single and parallel operation versions available
Maximum load: 300 kg for 250 mm stroke versions
Full-load speed: 7 mm/s for 250 mm stroke versions
Locked versions available for single-actuator applications
Parallel 24V versions available with 400 mm stroke
Parallel version available with twisted mounting eye

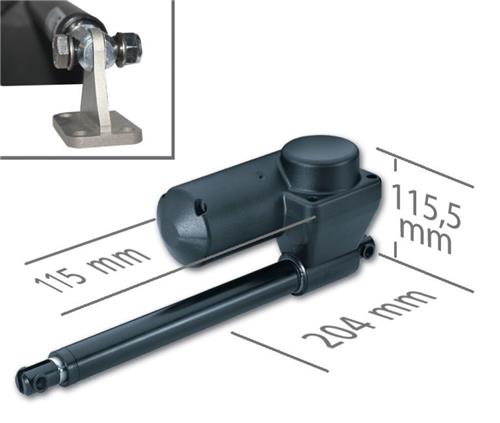

Mounting bracket available separately and suitable for installation on either side

Available Versions

Product Number	Version	Voltage	Current	Stroke	Center-to-Center	Parallel
036111	Standard	12V DC	8A	300 mm	456 mm	-
036112	Standard	24V DC	3.5A	300 mm	456 mm	-
036113	Locked	12V DC	14A	250 mm	406 mm	No
036114	Locked	24V DC	6.4A	250 mm	406 mm	No
036119	Parallel	24V DC	6.4A	400 mm	556 mm	Yes
036120	Parallel, Twisted Eye	24V DC	6.4A	400 mm	556 mm	Yes

Product Codes

036111 – Linak LA30, 12V DC, 8A, 300 mm stroke, 456 mm CTC – EAN 8720193014869
036112 – Linak LA30, 24V DC, 3.5A, 300 mm stroke, 456 mm CTC – EAN 8720193014876
036113 – Linak LA30, 12V DC, 14A, 250 mm stroke, 406 mm CTC, locked, non-parallel – EAN 8720193014883
036114 – Linak LA30, 24V DC, 6.4A, 250 mm stroke, 406 mm CTC, locked, non-parallel – EAN 8720193014890
036119 – Linak LA30, 24V DC, 6.4A, 400 mm stroke, 556 mm CTC, parallel – EAN 8720193014906
036120 – Linak LA30, 24V DC, 6.4A, 400 mm stroke, 556 mm CTC, parallel, twisted eye – EAN 8720193014913

Motor Control A, article 036201, is recommended for actuator control.
