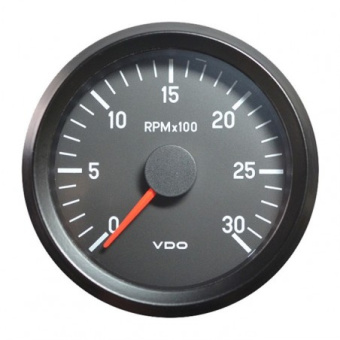

The VDO Cockpit International tachometer 333-035-001G is a rugged 80 mm, 12V instrument designed to track engine speed from 0 to 3,000 RPM for dependable engine monitoring in automotive, marine, and industrial installations. It accepts analog RPM signals from the alternator W terminal or ignition terminal 1, while the black dial, red backlit pointer, and selectable floodlight illumination (white, green, or red) keep readings clear across changing light conditions, supported by an IP64-rated front for strong environmental protection.
- Description
- Ask a Question
-
VDO Cockpit International 80 mm Tachometer for 12V Engine Monitoring
Built for clear, confident RPM tracking, the VDO 333-035-001G Cockpit International tachometer monitors engine speed from 0 to 3,000 RPM. Designed for 12V DC systems, it integrates with common analog signal sources such as the alternator W terminal and ignition terminal 1, making it a practical choice for dashboards and control panels where accurate engine-speed feedback matters.
Compatibility
- Automotive 12V DC engine monitoring systems
- Marine 12V DC engine monitoring systems
- Industrial 12V DC engine monitoring systems
- Analog RPM input from alternator terminal W
- Analog RPM input from ignition terminal 1
Technical Specifications
Brand VDO Part Number 333-035-001G Instrument Type Tachometer Measurement Range 0 to 3,000 RPM Operating Voltage 11 to 16 Volt DC Current Consumption (Without Illumination) < 100 mA Signal Input Analog (Alternator terminal W, Ignition terminal 1) Installation Hole Diameter 80 mm (3 1/8 inch) Outside Diameter 85 mm (3 1/3 inch) Installation Depth 91 mm Connector Type 8 pole AMP male blade connector (6.3 x 0.8 mm) Operating Temperature -20°C to +70°C Deflection Angle 320° Dial Color Black Pointer Red backlight Dial Illumination Floodlight illumination with white, green, and red options Front Protection Class IP64 (DIN 40050) Rear Protection Class IP42 (DIN 40050) Lens Plastic, anti-glare Housing Flame-retardant plastic Bezel Model Black triangle (interchangeable with special tool) Compliance CE Standard, EMC-tested according to EN 13309 and ISO 13766 Country of Origin Switzerland EAN Code 4103590925329 HS Code 90292031 Weight 0.15 kg Successor Part Number A2C3832980001
Product Details
- Series: Cockpit International
- Design: Black dial with a red backlit pointer for quick recognition at a glance
- Visibility: Floodlight illumination options (white, green, red) for night running and glare control
- Environmental Protection: IP64-rated front helps resist dust and water ingress for demanding installations
- Packaging: VDO instrument retail package
Features
- Accurate analog RPM display to support efficient engine operation and easier troubleshooting
- Designed for straightforward integration using alternator W or ignition terminal 1 input signals
- 80 mm panel format suits compact dashboards and instrument panels
- Anti-glare lens and robust housing support reliable performance in harsh operating environments
- EMC-tested design helps maintain stable readings in electrically noisy installations
-
